Automatic Air-Jet Sample Loom Air Jet Weft Insertion Suitable For Various Yarns Consists of control and mechanical part

Product Description

Product Description

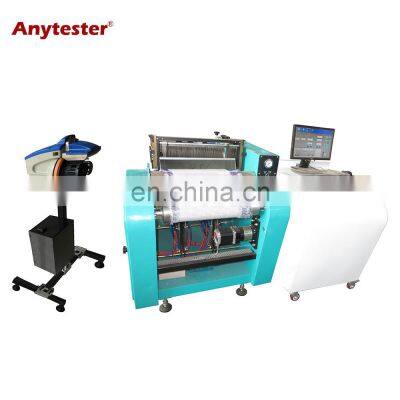

Product DescriptionAT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.Specification Model AT247Reed width12inches (16, 20 and 24 inch, optional)Yarn linear density range5~500texWeft density30~45weft/min, selectableNo. of heald frame4~20 Color selection1 color Let-offActive electronic controlTake-up Motor controlSheddingDobby shedding, pneumatic controlBeating-upMotor control Air pressure0.45~0.8MpaAir consumption Max. 500L/minPowerA220V 50Hz, single-phaseAC380V 50Hz, three-phaseDetailed Images★Consists of control part (computerized control platform) and mechanical part (loom);★Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;★Mechanical let-off, beating-up and take-up and pneumatic shedding; ★Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;★Heald frames up to 20pcs, easy to mount and dismount;★Professional software for designing or editing patterns;Packing & DeliveryPackagingSize(cm)140(L) * 180(W) * 180(D)Weight200KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment ItemT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance,paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 50,000usdDelivery Time7~10 days after receiving payment for one containerRelated ProductsAT241C Automatic Single Yarn Warping MachineAT241B Small Sample Warping MachineAT246A Semi-Automatic Sample LoomAT248 Automatic Rapier Sample LoomContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product

---
