Ljzx4-6500 Aluminum Profile Cutting Machine/Automatic Jmd CNC Cutting and Milling Machine

Product Description

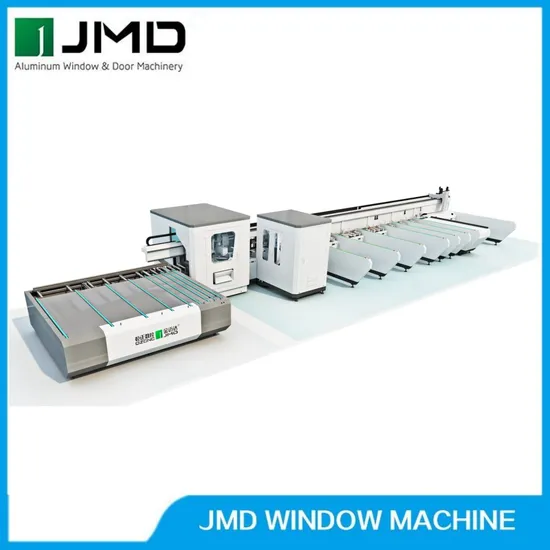

Arbitrary Angle Machining Center for Aluminum Window Door profiles
LJZX4-6500
The machine supports the batch cutting of frame, sash, mullion or fly screen frame profiles; it can also support mixed cuts of multiple profiles (frame, sash, mullion or fly screen frame profiles). Cutting mode can be 45° cutting at both ends of profiles, 90° cutting at both ends of profiles or one end 45° cutting and the other end 90° cutting. To cut some industrial aluminum profiles, cutting angle can be arbitrary between±45° at both ends.
It can process the glue hole, pin hole, drain hole, sharp angle, handle hole and lock hole, etc. Only load the aluminum profile to machine once, all processes can be completed.



Technical Parameter Cutting/milling width: 150mm Cutting/milling height: 150mm Cutting angle: any angle between ±45° Processing length range: 300~4600mm (up to 6500mm) Cutting length tolerance: ±0.1mm/1000mm Cutting angle tolerance: ±0.1° Raw material length required: 3000mm~6500mm Feeding stroke of manipulator: 7300mm
Details
Other Aluminum Window Machines You May Interested
Our Company
Our Team
Pcaking & Delivery of Our Aluminum Window Machines

---
