Outdoor Waterproof High Brightness Full Color Commercial Advertising LED Display Sign Billboard

Product Description

Outdoor Waterproof High Brightness Full Color Commercial advertising LED Display Sign Billboard
Product Description
Outdoor Waterproof Full Color LED Video Wall
Outdoor High Brightness LED Advertising Display Screen Panel Billboard FOR permanent/Fixed installation
P3mm P4mm P5mm P6mm P8mmP10mm~ For Option
Durable Steel Iron material Cabinet billboard
Cabinet back side with waterproof cap to protect the led screen from water and dust. High brightness and high definition bring you the good visual experience, apeal to your clents' eyes.
SMD Encapsulated with big LED Chip, Higher brightness and super waterproof.
High quality and color uniform mask which has stable performance and long life time.

IP65 protection grade, durable nature enables the screen led billboard to work in all outdoor weather conditions.
Application: The cabinet size can be customized according to your different project demand, and each one cabinet joining together into one big led screen, you can install the led screen on outdoor building wall(Shopping mall, bank, office buildings,etc), also can install on one pole in one square(The park, commercial street, sides of the road,etc)... Anywhere you want to install, we all can provide you the best project solution with product model.
Product Parameters

NO.	ITEM	PARAMETER	UNIT
Modules	Model	F1
	Pixel Pitch	10	mm
	Physical Density	10000	dots/m2
	LED Configuration:	1R1G1B	/
	LED Type:	SMD3535	/
	Module Size	320x160	mm
	Module Resolution	32x16	dots
	Module Power Consumption	9.8	w
Screen	Drive Mode:	1/4 Constant Current Drive	/
	Horizontal Viewing Angle	140	Deg
	Vertical Viewing Angle	140	Deg
	Brightness	6000	cd/m2
	Grey Scale	14~16	bits
	Refresh Rate	≥1920~3840	Hz
	Cabinet Resolution	96x96	dots
	Max. Power Consumption	750	W/m2
	Ave. Power Consumption	260	W/m2
	Cabinet Size	960x960	mm
	Cabinet Thickness	150	mm
	Cabinet Material:	Steel/Aluminum
	Color	>16.7	M
	Input Voltage	AC 110V~220V+/-10%	V
	Refresh Frame Frequency	60	Hz
	Protection Level	IP65 waterproof	/
	Working Environment:	Outdoor	/
	Working Temperature	-30- +70	ºC
	Operation humidity	10%-95%	RH
	Certificates:	CCC, CE,RoHS

Detailed Photos

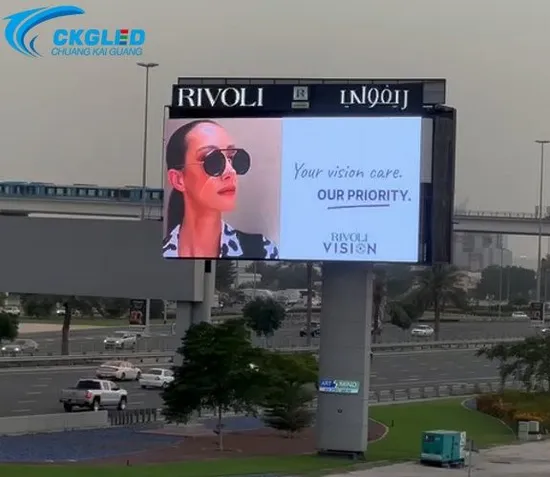

CKGLED Project Case


Packaging & Shipping

Certifications
After Sales Service
Pre-producing

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
In producing
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
After service
1. 2 years free maintenance
2. 7 days a week, 24 hours a day on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service

FAQ

Q1. Could I get a sample order of led display?A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products? A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?A: Yes, we offer 2 year warranty for our products in copper wire led and 3 years warranty for our gold wire product.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can reply on us

Q5: Do you have any MOQ limit for led display order?
A: No MOQ, 1pc order for sample checking is available.

Q6: How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea and by air. It usually takes 3-7 days by air to arrive, 15-30 days by sea.

---
