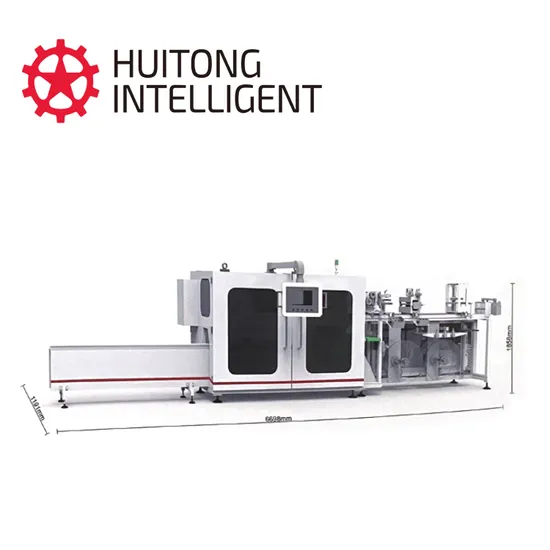

Automatic Disposable Non Woven Soft Cotton Facial Tissue Face Wash Paper Towel Making Machine

Product Description

Automatic soft towel production line Product Description ENHANCED PRODUCT DESCRIPTION:
Application: Soft tissue, box tissue, cream tissue.Features: Intelligent, systematic, exquisite and efficient.Value: With high running efficiency, low costs and good overall appearance, it can promote trustof customers. The uniform spare parts and strong compatibility can reduce inventory costsRelying on One Paper for maintenance can reduce communication costs. The cooperativework stations help to promote production efficiency. The remote lnternet of Things can achievebrowsing of data according to the authority, mastering of production trends, etc. throughmobile APPs.
Explanation: The production line can design the best solution based on the customer's workshop site conditions, production capacity, and product requirements.
Ready to embark on a lucrative venture in facial tissue or cotton towel production? Discover the essential machinery you need to succeed!
1. One Set of Highly Efficient Facial Tissue Folding Machine
2. One Set of Precision Facial Tissue Cutting Machine
3. One Set of Advanced Facial Tissue Packing Machine
4. One Set of Bundling Packing Machine for Ultimate Efficiency
Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products. Sophisticated Functions The maximum operational speed of the Fully Automated Facial Tissue Folding Machine, achieving an impressive rate of 100-130 m/min ♦ Intuitive operation and minimal maintenance, maximizing space efficiency with only one operator needed to transfer tissue logs post-operation ♦ Leverage our automatic cutting machine to dramatically boost production efficiency and ensure pristine tissues, free from human contamination ♦ Automatic shutdown feature when paper breaks, conserving resources by preventing undue waste Remarkable Features: 1. Seamless automatic counting and output for streamlined processing;
2. Versatile equipment offering 6-10 lines of varied models, providing customers with a broad range of choices. 3. Our 6-line facial tissue folding machine is perfectly aligned with current market demands, outperforming 2-4 line alternatives. 4. An independent valve control system for the knife groove ensures optimal adsorption and precise side-by-side folding. 5. State-of-the-art operation system featuring imported PLC and frequency conversion speed regulation for superior control.
Vivid Sample Picture:
Comprehensive Machine Information:
Key Technical Parameters:
1. Cutting-edge Tissues Fold Machine

Machine model	HT-PR02
Finished products unfolded size	180*210mm±2mm
Folding products size	90*(120-210)±2mm
Raw material width	400-2800mm
Raw material diameter	1100mm
Raw material core diameter	76.2mm
Out put (8 hours)	8000~10000Kg
Embossing unit	Steel to paper or steel to steel, Steel to steel edge embossing ,independent pneumatic regulation
Power	7.5KW Main motor
	3.0KW(2set) Unwind motor
Vacuum suction unit	47KW Fan
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Dimension	8700X3500X7000mm
Weight	12~13T

2. Advanced Facial Tissue Auto Log Separator integrated into the machine

No.	Item	Technical parameter
1	Sub-stack function	Adopts 4sets servo controlling, can achieve automatic separating
2	Sub-stack structure	Wall panel frame type
3	Sub-stack slide	All sub-stack slides adopt imported linear bearings, and adopt double-shaft structure to ensure the stability of each sub-stack part
4	Main sub-stack parts	All parts are aluminum alloy and processed by CNC machining center to ensure the accuracy of sub-stacking
5	Paper output baffle	All are processed by imported aluminum alloy to ensure the result of paper output
6	Sub-stack pneumatic part	Adopts AIRTAC pneumatic parts to ensure the accuracy of sub-stacking
7	Paper pieces tracking	Using high-precision encoder
8	Sub-stacking draws adjusting	Set on touch screen, can 100% accuratly adjust the draws(set based on even draws)
9	Set draws range	2layers, 100-200draws; three layers, 60-150draws
10	Sub-stacking times	Max sub-stacking 10times/min
11	Controlling method	when machine common stop, it must finish the whole stack then can stop machine
13	Paper support part	Stainless steel is used to ensure the strength and rigidity of supporting semi-finished products at high speed
14	Sub-stacking servo motor power	8.5KW
15	Compressed air pressure	≥0.6MPa
16	Gas consumption	1000L/shift
17	Air pressure	24V

Detailed Photos Captivating Machine Picture:
Company Profile Insightful Factory Information:
Machinery Process diagram:
Exchange of foreign friends:
CERTIFICATE:

---
