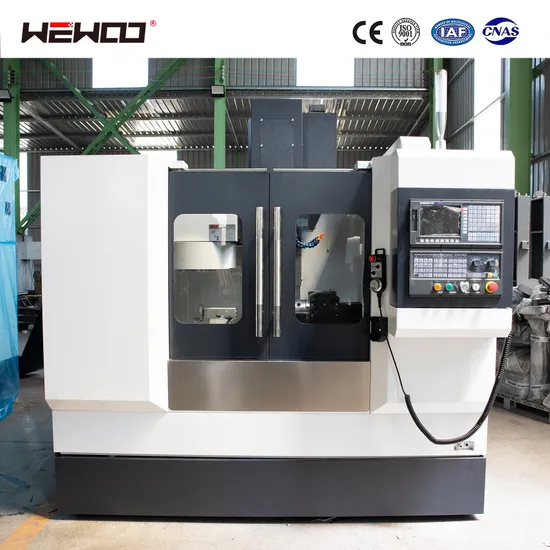

Xh7126 Economical Vertical Machining Center CNC Milling Machine Mini Vertical Cutting Turning Center/CNC Machinery/Machine Tools/Metal Cutting Machine

Product Description

Xh7126/Xk7126 Economical Vertical Machining Center CNC Milling Machine with CE for Sale
Product Description
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Specifications
The main specification :

Table size	1000X240mm
Max. table load	300kg
T slot qty-width*distance	3-14x75
spindle speed	8000r p m
spindle nose to table surface	90-470mm
Spindle center to Column surface	360mm
Spindle taper	BT40
Main motor power	2.2/3.7kw (servo)
X axis travel	450mm
Y axis travel	380mm
Z axis travel	400mm
X/Y/Z axis rapid feed	15/15/15m/min
Positioning accuracy	±0.01mm
Repeatabeility accuracy	±0.005mm
Net Weight	2400 kg
Overall Dimension	1900X1620X2000

The main machine tool parts

Serial number	Name	model	Origin	Quantity
1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1
3	ATC	12	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	guide	X, Y,Z all is linear way	Taiwan Hiwin	3
8	Cooling the pump	PMY-25-5	china	1
9	Lubrication system	Single wire damping	Taiwan Hurun	1
10	Pneumatic system		Taiwan Airtac	1

Standard configuration:
1.The CNC system: KND2000M
2.The knife: The famous Taiwan bamboo hat knife.
3.The unclamping cylinder: Taiwan Shangpin
4.The weight: Wuxi Xieqing nitrogen balance
5.The high quality castings: Resin sand casting
6.The spindle: Taiwan famous high speed spindle
7.The screw: HIWIN
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis
CNC milling machine features:
1.The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts
2.Machine base, column, spindle box, table and other basic parts, all adopt high-intensity Lost Foam molding technology, the internal microstructure stability, to ensure that the basic pieces has high stability. Casting structure through the machine dynamics analysis and finite element analysis, geometric structure to make it more reasonable, and the appropriate combination of ribs to ensure the high stiffness of the basic parts. Wide machine bed base, full load support design, to ensure that the heavy load when processing capacity.
3. high-speed high-rigidity spindle unit combined with the servo spindle motor; X / Y / Z using high-torque servo motor.
4.X / Y / Z adopt Taiwan's high-precision and high-strength ball screw with a pair of special ball screw bearings and high precision imported locking.

Specifications	Units	XH7124	XH7126	XH7136
Table size	mm	1000x240	1000x260	1000x360
X axis travel	mm	450	600	800
Y axis travel	mm	380	400	400
Z axis travel	mm	400	450	500
Max. worktable load	kg	300	300	450
T slot(number-width-pitch)		3-14x75	3-16x90	3-18x120
Max. spindle speed	rpm	8000	8000	8000
Spindle taper	mm	BT40	BT40	BT40
Main motor power	kw	2.2/3.7kw (servo)	5.5	5.5
X/Y/Z rapid traverse speed	m/min	24/24/20	24/24/20	24/24/20
Cutting feed speed	mm/min	1-8000	1-10000	1-10000
Guide rail type		Linear rail	Linear rail	Linear rail
Distance from spindle axis to column surface	mm	410	410	520
Distance between spindle nose and worktable surface	mm	100-550	100-550	130-630
Positioning accuracy	mm	±0.0075	±0.0075	±0.0075
Repeat positioning accuracy	mm	±0.005	±0.005	±0.005
Tool magazine		Arm 24	Arm 24	Arm 24
Max. tool diameter	mm	φ90	φ90	φ90
Max.tool weight	kg	8	8	8
Machine weight	kg	3000	3000	3000
Overall dimension	mm	1900*1620*2000	1900*1700*2100	2500*2050*2550

Detailed Photos
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 8000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use SKF or NACHI bearing,
2. Coupling R+W directly connected .
Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
