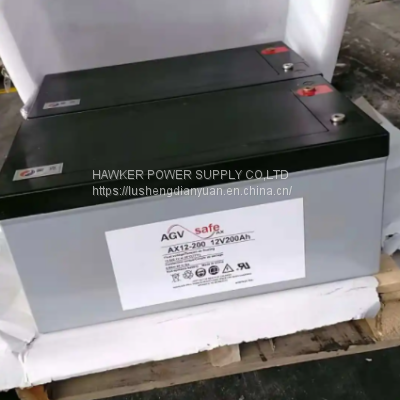

HAWKER Lead Acid Battery AX12-250 AGV
Detailed description
Mobile machines, including all kinds of mobile intelligent robots and AGV vehicles,the power of its own source is the battery. In order to ensure that the mobile machinery can be continuous, stable, safe and reliable work, reasonable configuration of power supply, choose to use high efficiency, and low cost battery, it is very important.
Hawker Power Group Limited is the world's most advanced power supply manufacturer. To meet the requirements of emerging applications, with its advanced manufacturing equipment and processes, the latest patented technology and materials, designed for mobile mechanical power supply adsorption (AGM) AX series maintenance-free lead-acid sealed batteries. The series of batteries in strict compliance with the international standard battery production, not only to strengthen the deep cycle discharge and fast charge capacity, but also improve the use of security and reliability, no damage to equipment and the environment, no pollution.
Follow the standard
● Product design in line with international standards IEC 60896 / 21-22
● In accordance with the Eurobat guidelines issued in 1999, this series of products belong to the "long life" category
● Complies with Telcordia SR-4228
● UL certification (UL standard 1989)
● According to the US "DOT Regulation 49" and the ICAO ICAO and IATA "Packaging Directive 806", it was approved as a non-dangerous goods suitable for land, sea and air transport
● certified by ISO 9001: 2000 and ISO 14001: 2004 certified Hawker factory production
Specifications and technical specifications
Types
parameter
| AGM (Adsorption) AX Series
|
AX12-18
| AX12-26
| AX12-33
| AX12-45
| AX12-60
| AX12-75
| AX12-100
| AX12-120
| AX12-150
| AX12-180
| AX12-200
|
Single voltage
| 12V
|
Rated Capacity
（25℃）
| 18AH
| 26AH
| 33AH
| 45Ah
| 60Ah
| 75Ah
| 100Ah
| 120AH
| 150AH
| 180AH
| 200AH
|
Internal resistance(mΩ)
| 10.0
| 8.0
| 9.0
| 7.0
| 6.5
| 6.0
| 5.0
| 4.5
| 4.0
| 4.0
| 3.8
|
Single
size
| Length
(mm)
| 181
| 166
| 195
| 198
| 260
| 260
| 308
| 408
| 485
| 530
| 522
|
width
(mm)
| 77
| 175
| 130
| 166
| 170
| 170
| 170
| 177
| 170
| 210
| 240
|
height
(mm)
| 168
| 125
| 180
| 170
| 185
| 235
| 215
| 225
| 240
| 215
| 225
|
weight (kg)
| 5.9
| 9.0
| 10.2
| 14.6
| 20.2
| 23.5
| 30
| 36.5
| 47.0
| 53.0
| 63.0
|
Short circuit current
(A)
| 900
| 900
| 1150
| 1250
| 1450
| 1750
| 2300
| 2420
| 2950
| 3350
| 3750
|
Maximum discharge
Current(A)
| 180
| 260
| 330
| 450
| 600
| 765
| 1025
| 1200
| 1510
| 1850
| 2100
|
Maximum charge current(A)
| 3.6
| 5.2
| 6.6
| 9
| 12
| 15
| 20
| 24
| 30
| 36
| 40
|
Charging voltage：Temperature: 25 ℃, float: 13.62V; fast charge: 14.2V
proper temperature：-10℃～40℃
Recommended temperature: 20 ℃ ~ 25 ℃
Number of deep cycle discharges：More than 1200 times 50% DOD; more than 800 times 80% DOD
|
Terminal
| M5
| M5
| M6
| M6
| M6
| M6
| M8
| M8
| M8
| M8
| M8
|
Detailed description
Hawker HuaDa AGV Safe series of lead-acid battery charger is a high-frequency switching power supply as the core, the main power converter using high-frequency high-permeability nanocrystalline transformers, microcomputer control of intelligent automatic charger.
High-tech applications, improve the efficiency of the whole conversion. Products with high efficiency, energy saving significant features, compared to traditional charger energy saving 20% -30%.
This series of microcomputer computer built-in a variety of battery charging program, accurate simulation of different types of battery charging curve. Choose a different charging program, can AGM, colloid, semi-colloidal and rich liquid water and other lead-acid batteries to charge.
The charging system consists of the charger and the charged battery to form a binary closed loop circuit. The dU / dt and dI / dt techniques are used to dynamically track the battery to accept the current. The microcomputer automatically determines the parameters of the on-line charging program according to the status of the battery, controls the output current and voltage Charging time, the charging current from the beginning to the end of the battery in the vicinity of the acceptable charge current curve, so that the battery almost no gas precipitation conditions. Not only save electricity, to achieve rapid charging, but also no damage to the battery to extend battery life. Current output is the pulse current mode, improve the battery charging capacity, reduce the concentration of polarization, electrochemical polarization, reduce gas generation. This is a very important way to reduce the battery temperature rise, reduce the battery plate deformation, reduce the gas flushing plate, reduce the active material off.
This series of charger with anti-battery reverse, the output short circuit, the output overload protection. Also has the function of automatic switch machine, can be connected to long-term input power. Need to charge, connect the battery pack, the charger work; no charge, disconnect the battery pack, the charger to stop working, the operation is very simple, user-friendly.
Hawker HuaDa intelligent automatic lead-acid battery charger is a high reliability, high stability of the new energy-saving lead-acid battery charger.
Specifications Model
Product model
| Charging mode
| Charging voltage / current
| Battery capacity
| Outline size
| Net weight
| Input power
|
Cell voltage
| Ah
| W*H*L(mm)
| Kg
|
|
TP4-24
| Three stage constant current
| 24V/4A
| 20-40
| 195*150*340
| 7
| 1Ф220VAC
|
TP8-24
| Three stage constant current
| 24V/8A
| 45-70
| 195*150*340
| 7
| 1Ф220VAC
|
TP15-24
| Three stage constant current
| 24V/13A
| 60-100
| 195*150*340
| 7
| 1Ф220VAC
|
TP20-24
| Three stage constant current
| 24V/20A
| 100-150
| 195*150*340
| 7
| 1Ф220VAC
|
TP25-24
| Three stage constant current
| 24V/25A
| 150-210
| 195*150*340
| 7
| 1Ф220VAC
|
TP30-24
| Three stage constant current
| 24V/30A
| 180-250
| 195*150*340
| 8
| 1Ф220VAC
|
TP35-24
| Three stage constant current
| 24V/35A
| 240-320
| 200*160*360
| 9
| 1Ф220VAC
|
Protection characteristics
Overheating protection: when the internal temperature of the charger is over 75 degrees, the charger can be shutdown and the temperature will drop automatically to recharge the battery.
• short-circuit protection: when the charger output unexpected short circuit, the charger automatically shut down the output, after troubleshooting, delayed 10 seconds, restart charging.
Overheating protection: when the internal temperature of the charger is over 75 degrees, the charger can be shutdown and the temperature will drop automatically to recharge the battery.
• short-circuit protection: when the charger output unexpected short circuit, the charger automatically shut down the output, after troubleshooting, delayed 10 seconds, restart charging.
Technical index
Rated input voltage: AC220V + 15%
• rated frequency: 45~65 Hz
Battery voltage: 24V/48V/72V/96V and so on
The full load efficiency: 93%
• maximum charging current: 4, 8,13,20,25A, etc.
The average charge and floating charge: automatically
Battery type: AGM, colloid, semi colloid and water rich water injection battery (charging program has been set at the factory. If you have to make a choice again, you need to do it under the guidance of a professional
Shutdown mode: automatic, or timer, or disconnect the charging plug, automatic shutdown
Cooling mode: forced air cooling
Display mode: LED digital meter, with LED light indication charging state
Mechanical shock and seismic rating: comply with SAEJ1378 requirements
Protection level: IP46
Operating temperature: -5 DEG C to +45 DEG C
Storage temperature: -30 DEG C to +70 DEG C
Charging control: temperature compensation control, never overcharge, lack of charge
Battery charging curve
Indicator light display
Red light - charging in progress.
The yellow light - the lights, the battery into floating state. When the yellow light is on, the capacity of the battery has reached 90%. After 2 hours, it reaches more than 96%. After 5 hours, it reaches more than 99%.
Light green - charging program complete. Battery capacity is more than 100%.
Display
Check the button in the panel: A - U - charge current, battery voltage, H charging time, charging C ah, E power. Button to see the parameters, the display automatically restores the charging current after 5 seconds.
>>
