2t-20t European Model Low Headroom Electric Wire Rope Hoist

Product Description

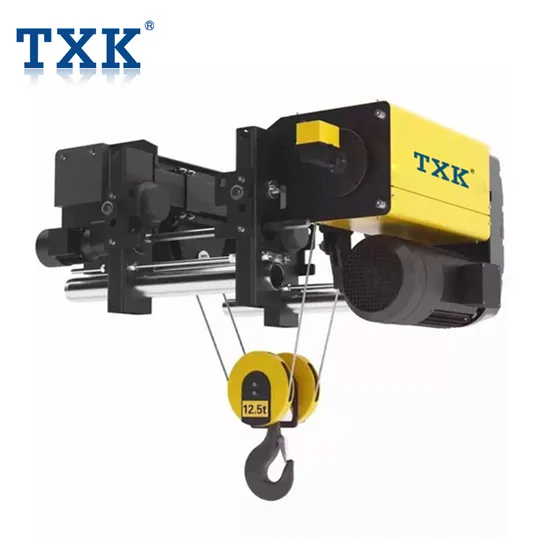

2T-20T European model Low Headroom Electric Wire Rope Hoist

European Standard Electric Hoist is a special lifting equipment, mounted on the overhead cranes, gantry?cranes.?It with small size, light weight, simple operation, easy to?use?features, usually be used in?industrial and mining enterprises, storage terminals and?other?places.?It is with low headroom hoist trolley, which is installed on the bottom flange of the main?beam.?The low?headroom hoist allows maximum effective use of the available lifting?height.
Feature:
1. High working effiency; Excellent Performance, safe and Reliable
2. Smooth movement & comfortable operation;
3. Convenient maintenance & aesthetic painting;
4. Compact structure, light deadweight, light wheel load and reliable performance;
5. Efficient Transmission and power Source
6. Customized: design and manufacture according to your request.

Technical parameters :

load capacity(kg)	FEM	ISO	speed(m/min)	trolley speed(m/min)
1000	4m	M7	0.8/5.0	5-20
1250	3m	M6	0.8/5.0	5-20
1600	3m	M6	0.8/5.0	5-20
1600	4m	M7	1.3/8.0	5-20
2000	2m	M5	0.8/5.0	5-20
2000	3m	M6	1.3/8.0	5-20
2500	3m	M6	0.8/5.0	5-20
2500	3m	M6	1.0/6.3	5-20
2500	2m	M5	1.3/8.0	5-20
3200	2m	M5	0.8/5.0	5-20
3200	2m	M5	1.0/6.3	5-20
5000	2m	M5	0.8/5.0	5-20
5000	2m	M5	1.6/10	5-20
5000	3m	M6	1.3/8.0	5-20
6300	1Am	M4	0.8/5.0	5-20
6300	1Am	M4	1.3/8.0	5-20
6300	2m	M5	1.3/8.0	5-20
6300	3m	M6	1.0/6.3	5-20
8000	1Am	M4	1.3/8.0	5-20
8000	3m	M6	0.8/5.0	5-20
10000	1Am	M4	1.0/6.3	5-20
10000	2m	M5	0.8/5.0	5-20
10000	3m	M6	0.66/4.0	5-20
12500	1Am	M4	0.8/5.0	5-20
12500	2m	M5	0.6/4.0	5-20
12500	2m	M5	0.6/4.0	5-20

Company :
Workshop of European model wire rope hosit:
Spare Parts :
Package: Wooden case
Appilications:
Certificate:
We provide quality, safe and stable products to meet the highest industrial standards.We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world. Exhibition:
Jiali Machinery Co., Ltd have been exported to more than 50 countries and regions in Europe, America, South America, Middle East, Africa and Southeast Asia .Meanwhile, we attend the domestic Canton fair twice and also attend some international fairs, eg: Mexio fair,Thailand fair,India fair,Moscow etc as well as visiting foreign customers every year
Other lifting equipments:
Electric chain hoist, Manual hoist

---
