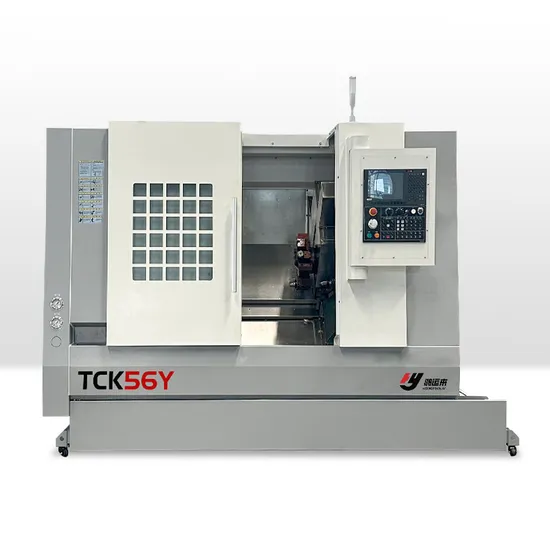

High Speed 3 Axis CNC Lathe Tck56y with Automatic Tool Changer and Fanuc Control for Metal Part Milling and Turning

Product Description

Product Parameters

Project			Units	Specifications		Remarks
Maximum turning diameter on bed			mm	560
Maximum cutting length			mm	400
Maximum cutting diameter			mm	300		12 stations (diameters of opposite sides of cutter head 240, center height of cutter tower 130)
Standard cutting diameter			mm	240
Maximum turning diameter on the skateboard			mm	300
Spindle end type and code				A2-6		Motorized spindle
Main shaft hole diameter			mm	65
Max over bar diameter			mm	50
Single spindle Headstock	Maximum spindle speed / Maximum spindle output torque		r/min/Nm	4500/144
Spindle driver			Power	30KW
Standard chuck	Chuck diameter		inch	8 "hollow hydraulic chuck
X-axis fast shift speed			m/min	30
Z-axis fast shift speed			m/min	30
X-axis stroke			mm	200
Z-axis stroke			mm	550
Y-axis stroke			mm	35 + / - 35
Standard knife holder form			BMT40	Horizontal 12-station servo (three-sum)
Tailstock travel			mm	450
Tailstock spindle taper			Mohs	4# (small spindle)
Tool size	External round knife		mm	20 * 20

Product Description

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems

---
