Small Precision Twin Screw Plastic Experiment Line with Ideal for Formulation Development and Small Scale Production

Product Description

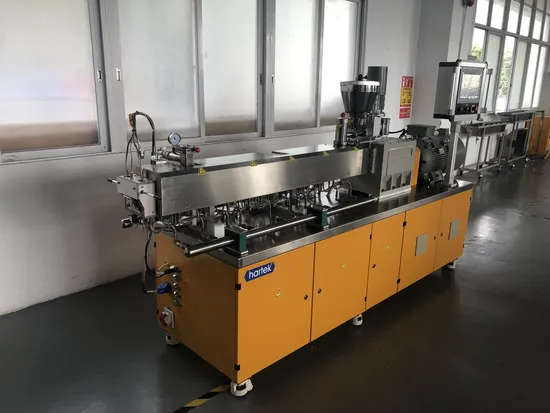

Product Performance of Lab Twin Screw Extruder:
* Split opening barrel and screw structure of the building block make it easy and quick to adjust the process.
* Quick-opening head and mesh changer, fast material exchange and quick change.
* SIEMENS touching screen PLC control system,highly intelligent, easy to operate.
Application Scope of Lab Twin Screw Extruder:
* Mixing, kneading and pelletizing of general plastics, engineering plastics, elastomer, etc.
* Material plasticization, conveying and reactive extrusion
* High effective compounding of polymer alloy
* Modification of filled polymer

Technical Parameters

Model	HTGD-11	HTGD-16	HTGD-20	HTGD-25	HTGD-35
Screw Diameter(mm)	11.7	15.6	21.7	25	34.5
L/D Ratio	40:1	40:1	40:1(up to 48:1)	40:1(up to 48:1)	40:1(up to 48:1)
Motor Power(kW)	1	2	5.5	7.5	18.5
Max. Speed(rpm)	600	600	600	600	600
Max. Temp.(ºC)	350.0	350(optional 450)	350(optional 450)	350.0 (optional 450)	350(optional 450)
Temp. Accuracy(ºC)	±1.0	±1.0	±1.0	±1.0	±1.0
Pressure Measuring Range(Mpa)	0~35.0	0~35.0	0~35.0	0~35.0	0~35.0
Pressure Measuring Accuracy	0.2%F.S	0.2%F.S	0.2%F.S	0.2%F.S	0.2%F.S
Output (kg/h)	0.1-1	0.1~5	0.5~20	1~30	5~80
Weight(kg)	135	268	719	785	908
Dimension	1200×400×550mm	1382×690×1230mm	2375×690×1630mm	2575×690×1630mm	3375×690×1660mm

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.

---
