Single/Double Oven Plastic PVC/UPVC/PP Pipe/Tube Belling/Socketing/Socket Making Machine Price /Pipe Belling Machine

Product Description

Product Description

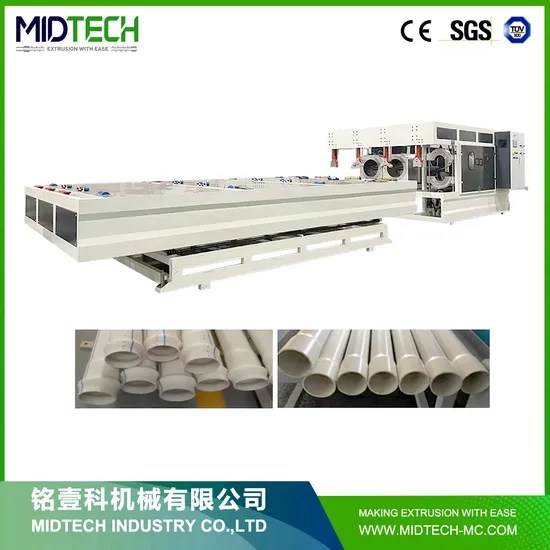

Single/Double Oven Plastic PVC/UPVC/PP Pipe/Tube Belling Machine/Socketing/Socket Making Machine

Main technical parameters
pipe expand range out diameter	Φ 200-500mm
Belling type	U type, R type
Oil label	No. 46/hydraulic oil
Quantity of heater	2
Heating power	24kw
highest temperature in heater	300 Centigrade
Air pressure	0.4~0.6Mpa
Method of belling R type	External pressure system
Max speed of production	6 sockets/h
Working method	On line/single machine
Cooling water pressure	0.2~0.3Mpa
Total power/Capacity	54kw
Pipe length	3-6m
Center height	1100mm± 50mm
Machine set weight	3.6T
Dimension of machine	8290x2750x2080mm

It is specially used for belling of PVC pipes with OD 16-630mm.
The pipe belling type: Straight type and R type. The shaping method is External pressure system. After shaping the force water cooling of pipe are adopted to ensure precise belling size.
The machine can be used on complete extrusion line with PLC control.
The feature and application of SGK series full automatic belling machine:
1) It is suitable for plastic pipes with R type and U type.
2) Control:Japan Mitsubishi PLC.
3) Double, single or four ovens.
4) PVC pipe range: 16-630mm.
5) It can not only used in line with the pipe production line but also can be used alone.
6) The characteristics of this machine is full automatic, stable and reliable, easy to operate.
7) It adopts vacuum calibration inside the mould and force air/water cooling outside.
Our service:
1) We recommend of machine and auxiliary equipments and relevant budgeting, human resources allocation and budgeting.
2) We would like to answer any inquiry within 24 hours and it will be solved as soon as possible.
3) The buyer can send the worker to our company for training.
4) The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
5) Our engineer can be to the Buyer's company for installation and testing the lines.

---
