All Metal IP65 Waterproof Dual Frequency 125kHz&13.56MHz Em/MIFARE/NFC Card Wiegand 26bits Access Control RFID Reader

Product Description

All Metal IP65 Waterproof Dual Frequency 125kHz&13.56MHz Em/MIFARE/NFC Card Wiegand 26bits Access control RFID reader ELEGANT DESIGN

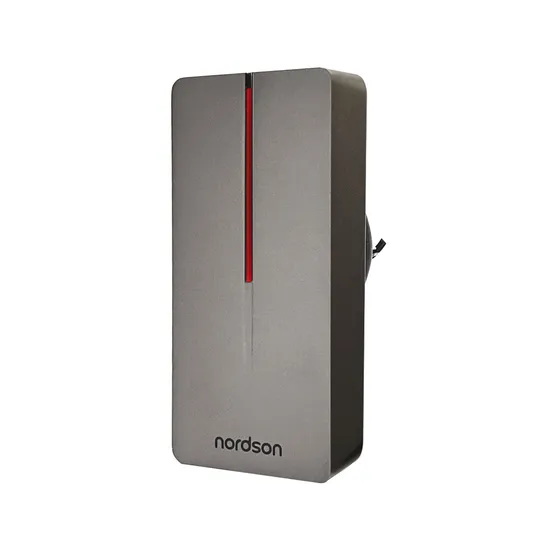

The PRO RF1 is a minimalist card reader inspired by the story of Moses parting the red sea from Bible.The design redefines traditional access control card reader as a real all-metal card reader,Perfectly Combines Both Aesthetics And Functionality
PRECISE MANUFACTURING
Comparing to most other card readers, card reading frame is not needed in the reader. Zinc alloy casting process, CNC lathe, sand blast finishing and cappuccino-black painting are applied.Various Context Utilisation.
Function :SECURITY AND RELIABILITY
The sturdy shell is water-proof and dust-proof with IP65. EM/ID/IC are supported. 5 centimeters maximum sensing distance enhances user experience. Anti-Vandal function assures the local security at the same time.
1.ID/MF/EM/NFC Supported
2.All-Metal Card Reader
3.65 Ingress Protection
4.Up to 5cm Reading Distance
5.-20 - 50ºC Operating Temperature
6.Wiegand 26-37 Bit.(WG34/37bit Customization Available)
Specification :

Model	PRO RF1
Body Material:	Zinc Alloy
Card types:	EM,ID Card(125Khz),IC Card ( include Mifare & CPU,13.56Mhz,ISO14443A)
Reading Range:	3-10cm
Output Format:	Wiegand 26
Options	WG34/37bit Customization Available
Ingress Protection:	IP65
Input Voltage:	DC12V±10%
Quiescent Current:	≤35mA
Operating Temperature:	-20~95%
Operating Humidity:	0~95%
Dimension:	103×48×22mm

---
