Pet Flakes Crushing and Washing Drying Line

Product Description

Configuration table :

No.	Machine	Qty.	No.	Machine	Qty.
1	Belt conveyer	1set	11	Screw conveyer	1set
2	Label Scraping Machine	1set	12	High speed friction washer	1set
3	Manual Separating Table	1set	13	Screw conveyer	1set
4	Metal detector	1set	14	Floating washer	1set
5	Belt conveyer	1set	15	Screw conveyor	1set
6	Crusher PC 800	1set	16	Dewatering machine	1set
7	Screw conveyer	1set	17	Drying system	1set
8	Floating washer	1set	18	Label separator by air	1set
9	Screw conveyor	1set	19	Storage hopper	1set
10	Steam washer	1set	20	Electric elements	1set

machine specification :

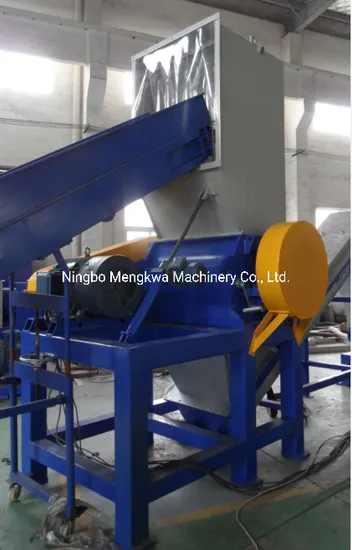

Crusher PC 800 motor power:37KW qty of fixed blades: 4PCS qty of rotating blades:10PCS material of blade:SKD11 Diameter of the hole of the mesh: Ф 17mm
Floating washer width:1320mm working length:4500mm power of motor for washing:2.2kw*2 Diameter of screw:300mm The contact part with the material is made of stainless steel 304 Power of motor for push flakes:3KW
Steam washer Diameter of the barrel: Ф1650mm Volume: 4.5m3 Motor power: 7.5kw, Frequency control Heating power: Gas Heating/Electricity Heating 36kw (Temperature Need:60-80C) The contact part with the material is made of stainless steel 304 There is thermal keeping material around the machine
High speed friction washer Diameter of r screen hole: 3mm Motor power: 30Kw Rotary speed of screw: 1440Rpm the contact part with the material is made of stainless steel 304
Drying system power motor:7.5kw pipe diameter:219mm Heating power 36kw (Temperature Need:50-60C,just for pet) The parts contacted the raw material are made of stainless steel 304
Storage hopper volume:2m3 made of stainless steel 304
01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
