Cn Low Price High Quality Vertical Broaching Machine: Model No.: L6120 Seamless Steel High Precision Horizontal Broaching Machine

Product Description

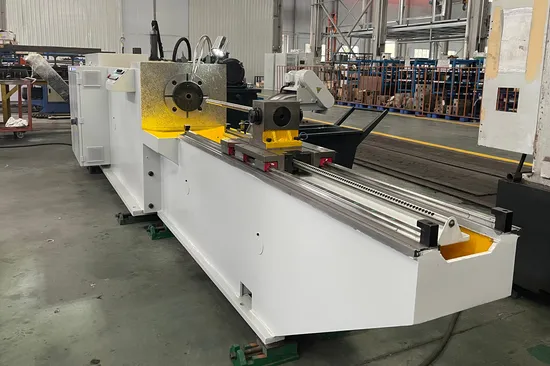

Product display
Horizontal broaching machine is suitable for all kinds of mechanical parts of the disk, sleeve, ring hole keyway, special-shaped hole and spiral flower between the geometric shape of finishing. Widely used in automobiles, motorcycles, agricultural machinery, textile machinery, band sawing machine, bench drill, power tools, cutting tools, motor, reducer, water pump, air conditioning and gear, sprocket, worm gear and other manufacturing industries, suitable for mass production production efficiency is far higher than milling machine, slotting machine and planer. It has the characteristics of high precision and high efficiency. This series broaching machine is simple in structure, easy to maintain and easy to operate. Because broaching speed is small, cutting temperature is low, tool wear is slow, so broach durability is high. This machine tool has two kinds of automatic circulation and semi-automatic circulation. We can also customize different types of hydraulic equipment according to customer requirements. This machine is a high-precision equipment for broaching inner hole, square hole, single key, spline, inner tooth, inner four Angle, hexagon, octagonal bearing hole of mechanical parts with geometric shape. High efficiency, high precision, simple operation, low labor intensity, suitable for mass production.

Machine Feature:
1. The machine bed has a great improvement, using coaxial machining technology, machining accuracy is quite high.
2. Hydraulic oil supply system adopts axial high pressure variable piston pump, and broaching speed can be adjusted stepless. Different diameters and different lengths of various specifications of broach can achieve the working state.
3, The key parts of the machine cylinder, using high quality thick wall seamless steel pipe, piston rod after tempering, high frequency, burning process processing and manufacturing, using high wear-resistant bushing and high wear-resistant sealing components of high quality cylinder, to provide strong power for the machine.
4, the hydraulic control system adopts the differential circuit, and increase the back pressure control, the use of broaching machine special solenoid valve to greatly improve the efficiency of the machine, the operation is more stable.
5. The point distribution system is designed on the front of the machine tool, which is more convenient for electromechanical linkage operation. 6, due to the use of the above advanced technology and processing technology, compared with the old machine tool, the machine can save more than 50% electricity, improve the work efficiency of more than 30%.

Item	Unit	YL10T	YL20T	YL30T	YL40T	YL50T
Motor power	Kw	4	5.5	7.5	11	11
Cylinder travel	Mm	1200	1200	1500	1500	1500
Cylinder diameter	Mm	100	147	168	195	200
Pump spec		16	25	25	32	32
Piston	mm	100	125	140	160	160
Weight	kg	10000	12000	15000	18000	20000
