Hot Rolled Steel Sheet Pile in U Shape/Type 400*100/400*125 Size

Product Description

Product Parameters Specifications And Models Of Steel Sheet Pile

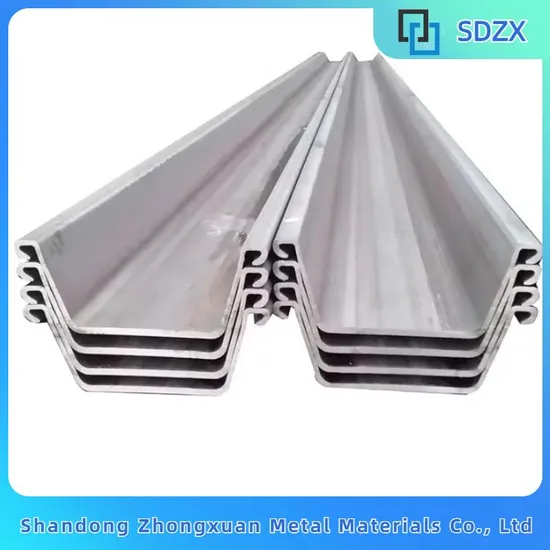

U type steel sheet piles

Size				Per piece
Specification	Width (mm)	High (mm)	Thick (mm)	Section area (cm2)	Weight (kg/m)
400 x 85	400	85	8.0	45.21	35.5
400 x 100	400	100	10.5	61.18	48.0
400 x 125	400	125	13.0	76.42	60.0
400 x 150	400	150	13.1	74.40	58.4
400 x 170	400	170	15.5	96.99	76.1
600 x 130	600	130	10.3	78.7	61.8
600 x 180	600	180	13.4	103.9	81.6
600 x 210	600	210	18.0	135.3	106.2
750 x 205	750	204	10.0	99.2	77.9
	750	205.5	11.5	109.9	86.3
	750	206	12.0	113.4	89.0

Product Parameters
Product Name	Steel Sheet Pile
Grade	S275, S355, S390, S430, SY295, SY390, Grade50, Grade55, Grade60, A690
Origin	CHINA
Standard	EN10249, EN10248, JIS A 5523 and JIS A 5528, ASTM A328 / ASTM A328M
Technique	Hot rolled and cold bend
Width	400-750mm as required
Thickness	6-25mm as required
Length	6m, 9m,12m,18m Large quantity can be customized
Shape	U shape and Z shape
Coating	Bared, Black Painted (varnish coating), Galvanized
Supply Capacity	500000 tons / month
Certificate	ISO UCC /IAF/CQC/SGS/KS
Deliver time	7-15 days
Usage	Construction of groundwater level adjustment wells, land retaining walls, bridge foundations, excavation walls and temporary support structures, etc.

Z type steel sheet piles:

Specification	Width (mm)	High (mm)	Thick t (mm)	Thick s (mm)	Weight (kg/m)
SPZ12	700	314	8.5	8.5	67.7
SPZ13	700	315	9.5	9.5	74
SPZ14	700	316	10.5	10.5	80.3
SPZ17	700	420	8.5	8.5	73.1
SPZ18	700	418	9.10	9.10	76.9
SPZ19	700	421	9.5	9.5	80.0
SPZ20	700	421	10.0	10.0	83.5
SPZ24	700	459	11.2	11.2	95.7
SPZ26	700	459	12.3	12.3	103.3
SPZ28	700	461	13.2	13.2	110.0
SPZ36	700	499	15.0	11.2	118.6
SPZ38	700	500	16.0	12.2	126.4

(1) River bank protection and flood control.
(2) Ports and wharfs.
(3) Water catching station.
(4) Bridge piers.
(5) Road widening retaining wall.
(6) BASEMENT.
(7) Underground garage.
(8) Isolation facilities.
(9) Load-bearing foundation.
(10) Temporary works.
U shaped steel sheet pile has multiple advantage:
1.Wide range of selections in terms of geometrical characteristics,widening the choice of enconomically optimized profiles for particular projects.
2.Great aptitude for repetitive uses.
3.Wide range of section modules,suitable for various types of construction purposes,Service-proven to many kinds of projects such as permanent structures,temporary earth-retanining Works and temporary cofferdams etc.
Z shaped steel sheet pile's advantanges:
1. Extremely competitive section modulus
2. Economical solution
3. Large width resulting in high installation performance
4. High tensile strength
5. Ideal for permanent structure project
Good durability
Dependind on the difference of service environment,the serive life can be up to 50years.The construction is environmentally friendly,and the amount of soll and concrete is greatly reduced,which can effectively protect land resources.
Strong adaptability
Material can be recycled and reused for 20-30 times in temporary works.Compared with other monomer structures,the wall is light and has greater adaptability to deformation,which is suitable for the prevent and treatment of various geological disasters.
Application
Construction of groundwater level adjustment wells, land retaining walls, bridge foundations, excavation walls and temporary support structures, etc.
FAQ How can we guarantee quality? Our strengths:We have an independent factory in China. Guarantee product quality and delievery time .
We sell to North America(15.00%), South America(10.00%), Eastern Europe(10.00%), Southeast Asia(10.00%), Africa(10.00%), Oceania(5.00%), Mid East(5.00%), Eastern Asia(5.00%), Western Europe(5.00%), Central America(5.00%), Northern Europe(5.00%), Southern Europe(5.00%), South Asia(5.00%), Domestic Market(5.00%).
Always final Inspection before shipment;
2. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
3.Does the factory have the ability to process according to the drawing independently?
We have a professional team that can customise products according to project drawings to design the best

---
