Hewai Water Heating Systems OEM Coils 16mm-63mm Multilayer Pert-Al-Pert Pipes with GOST

Product Description

Company Profile HEWAI is one of the leading Chinese producers specialized in integrated plastic piping system,we are mainly export and poroduce PEX pipe,PERT pipe,PPR pipe,EVOH PEX/PERT oxygen barrier pipe, PEX-Al-PEX pipe,PE-AL-PE Gas pipe,PERT-AL-PERT pipe.Our products are widely used in floor heating,water supply,gas,air condition,solar,heating&cooling system etc.
With the growing market demand,HEWAI invest and build a new plant with all production lines upgraded to the most advanced high-speed extrusion equipments,which can produce 300,000meters per day.
We have a strict quality control management from raw material to finished products,only select highest quality raw material suppliers such as Dowlex,MitsuiChemicals,SK,LG,BORELEALIS,Lyondellbasell,Kuraray,Hyundai,etc.,we have a constant online monitory on all production parameters,and when finally produced there's consist monitory and testing on our onsite labs, that make sure only the best pipes leave the factory.
HEWAI is one of the only Chinese manufacturers that produces in-house both the PEX and multilayer pipes and their fittings. This let us offer a full guarantee for the complete system, which is an important advantage for our clients. Product Description

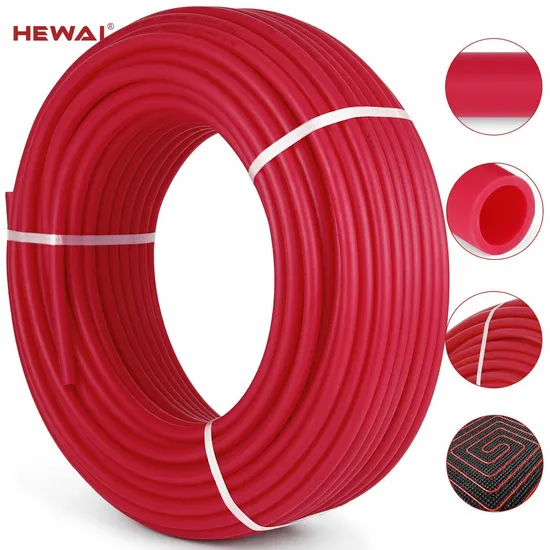

Hewai Water Heating Systems OEM Coils 16mm-63mm Multilayer Pert-Al-Pert Pipes with GOST
1.What's the multilayer pipe?Multilayer Pipe, also called multilayer composite pipe MLCP, or composite pipe, has been widely used for hot & cold water plumbing systems, underfloor heating systems & indoor gas distributions.,etc.Multilayer pipes are a "composite pipe", which are made of composite materials with a five layers' structure. The inner & outer layers are regularly made of PEX/ PERT (or HDPE) material, middle layer is aluminum core, which is welded in a seamless laser welding technology or overlap welding technology. To bond the PEX layers to aluminum layer, a special adhesive shall be used.2.What types of multilayer pipe can HEWAI provide? And which specifications of multilayer pipe that can manufacture?PE-AL-PEXa Pipe,PEXb-AL-PEXb Pipe,PEXc-AL-PEXc Pipe,PERT-AL-PERT Pipe,PEXc-AL-PEXc Pipe

PEXb-AL-PEXb			PEXc-AL-PEXc			PE-AL-PEXa			PERT-AL-PERT
Diameter (mm)	Wall Thickness(mm)		Diameter (mm)	Wall Thickness(mm)		Diameter (mm)	Wall Thickness(mm)		Diameter (mm)	Wall Thickness(mm)
12	1.5		12	1.5		16.6	2.5		12	1.5
16	2.0		16	2.0		20	2.9		16	2.0
20	2.0		20	2.0		25	3.7		20	2.0
25	2.5		25	2.5		32	4.7		25	2.5
26	2.6		26	2.6					26	2.6
32	3.0		32	3.0					32	3.0
40	4.0		40	4.0					40	4.0
50	5.0		50	5.0					50	5.0
63	6.5		63	6.5					63	6.5

3.Which standards do multilayer pipe be made into?Multilayer pipe is made into GB/T18997 standard.At the same time, it can confirm to ASTM F 1281/1282 & EN ISO 21003 standard.4.What's the main difference between butt welding & overlap welding of multilayer pipe?Butt welding & overlap welding are the most regular welding technology for aluminum core of multilayer pipe. Overlap welding technology is ultrasonic type welding, by using ultrasonic to weld the aluminum in a overlap way.utt welding technology, also called "seamless butt laser welding", is to weld the aluminum by laser in a seamless butt welding way. By comparison to overlap welded multilayer pipe, the laser welded pipe is considered to be more stable on aluminum welding jointing, especially when the pipe is rounded & beveled by reamer, the multilayer pipe with laser welding is no easy to crack off.
Production Workshop
Laboratory
Exhibition
Packaging & Shipping
FAQ1.Where is your factory located in?
Our factory is located in Lu 'an, Anhui Province, which is only 10-minute drive from the high-speed train station.
2.Can you provide us some samples for testing?
Ok, no problem . For small amount of samples, we can free for you.
3.Which kind of payment terms you usually do?
We usually do T/T, But L/C is no problem.
4.How about the delivery time?
For small order, 15 days is ok,large order maybe will 30 days.
5.Do your factory can provide OEM Services?
Yes, we can. We have OEM Customers from Europe and Southeast Asia.
About more Information, please feel free to check our website : https://hewaipipe.en.made-in-china.com

---
