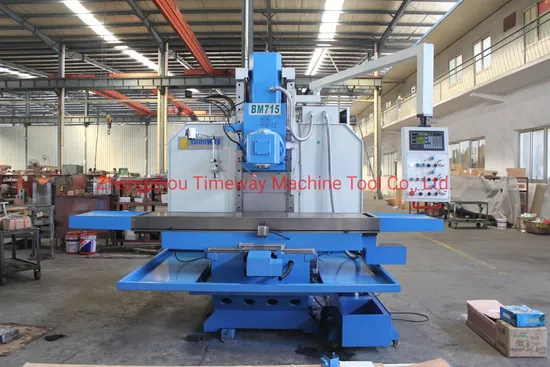

PLC Control Bed Type Vertical Universal Milling Machine (BM715)

Product Description

Fresadora / Heavy Duty Vertical Universal Milling Machine
Model: BM715

PART 1---Product Description
***Features:
1.Full gears transmitting headstock , ISO50 spindle through reconditioning, carburizing, and quenching
process, increase the rigidity,
2.3-axis precision digital readout indicator (DRO) , with electronic handwheel (MPG), extremely minimize
the setting time, control equivalent:0.001mm ;
3.Program controlled , can realize multi-points & steps automatic lubricate.
4.Precision ball rolling lead screws transmit, double servo motors drive, can realize 13000m/min rapid
cutting.
***Standard Accessories:
Electric cabinet and hung up control panel, Oil collecting plate, Coolant pump, Draw bar,
Manual pulse generator (MPG), Auto. lubricate pump, Machine vise, Collet chuck, Reduction sleeve,
Work light, 3axis digital readout system(DRO), Wrenches.

***Optional Accessories:
Clamping kits, Aair power draw bar, Rotary table, Dividing head.

***Parameter:

Specifications	Unit	BM715
Spindle hole taper	mm	7:24 ISO50
Spindle speed range	r/min	Variable 6-300,30-1500
Distance between spindle axis and column guideway	mm	610
Distance between spindle nose and table surface(V)	mm	0-650
Distance between spindle axis and table surface(H)	mm	8-660
Table size	mm	2100*500
T slots	mm	4/20/100
Table travel-X	mm	1500
Table travel-Y	mm	650
Table feed-X/Y	mm/min	2.5-3000
Table feed-Z	mm/min	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000
Main motor power	Kw	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18
Cooling pump motor power	w	90
Overall size	mm	3220*2420*2800
Weight	kg	7300

Part 2---Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).


Part 3---FAQ
1. Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. Payment terms: T/T, L/C, Western Union payment terms is acceptable.
3. Delivery time: 60~90days....(vary as the machine's different size and complexible).
4. Warranty period: 12 months after delivery.
(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price). Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
