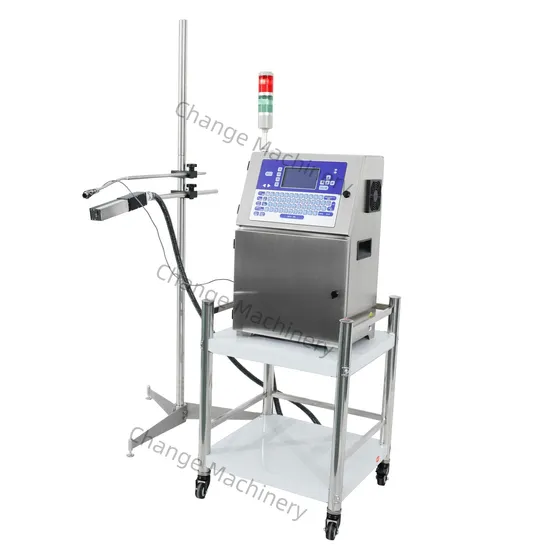

Small Ink Jet Printing Machine

US$3,700.00-8,900.00 1 set (MOQ)

Basic Info.

Model NO.

CHRP-1

Type

Continuous Jet Type Coding Machine

Usage

Daily Industrial, Chemical Products, Drug, Food

Automatic Grade

Fully Automatic

Principle of Classification

Continue Ink Jet Printer

Application of Classification

Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Packaging

Bottle

Function

Print Date to Bottle Box Paper

Print Lines

1-2 Lanes

Transport Package

Carton Box

Trademark

Change

Origin

Chian

HS Code

8420303090

Production Capacity

20sets/Month

Packaging & Delivery

Package Size

65.00cm * 55.00cm * 135.00cm

Package Gross Weight

85.000kg

Product Description

Introduction:
Print Function:
It has a programmed of graph editor and also can print the picture and logo. Moreover, it can print running number, count and print the time even second.
Product Characteristics:

One key to easily turn on /off	It can automatically wash the spray nozzle and tube, avoid the ink blocking when the machine off.
Operate panel	English/Chinese operate panel
Standard QWERTY keyboard.	It can automatically find the breakdown, the user can breakdown producer fast.
Dimension	550mm×450mm×230mm,G.W 24KG
Power	Single phase 100v-240v,50HZ/60HZ,200W
RS-232 data interface, Photocell.

Product specifications:

Print lines	3 lines Chinese character,4lanes English character
Print area	1.5mm-12mm
Data memory space	Standard 24 items,max 60items
The longest date length	1055 piece(7×5 character)
Single line print speed(5×5)	178m/min
Double line print speed(16 point)	36m/min
3 lines standard print speed(24point)	21.5m/min
