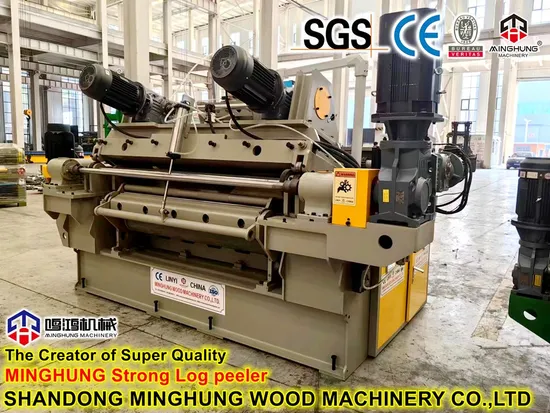

4feet Hard Wood Veneer Peeling Line

Product Description

4feet Hard wood Veneer Peeling Line
Veneer production line
The complete veneer production line includes Debarker, Peeling, Log loader, and Stacker.
This production line, can produce different veneer sheets size by processing wood, through set data from the cnc screen.
For one set strong veneer peeling machine, it can peel kinds of hardwood easily, keep stable, and make sure your veneer be good quality. Whatever you sell it directly, or you will produce other products by it, it will be helpful for your business.


Veneer production line details
<1> Wood Debakrer
Wood debarker is the first step for veneer production, its function for peeling wood bark.
After start debarker machine, its rollers will running and rotate, put log into it, and operate the handle, machine will peel wood bark.

Max processing length: 1400mm Max processing diameter: 500mm Speed: 70m/min Power: 27.5kw

<2> Wood peeling machine
Wood peeling machine is one very important machine for veneer production. Its function for peeling pieces of wood layers by processing wood. You can set the data like veneer thickness, cutting width and others as you want from the cnc screen. One set good wood peeling machine, it includes many good and convenient functions, thus your workers will easy operate, and improve work efficiency

Max processing length: 1400mm Max processing diameter: 500mm Thickness: 1-3mm Speed: 30-100m/min (Adjustable) Power: 47.5kw

<3> Log conveyor
Log conveyor is simple, its function for convey wood into debarker and peeling machine.
<4> Automatic stacker
Automatic stacker is for automatic stacking veneers which comes out from veneer peeling machine, with this stacker, it will help you save labor cost, and improve work efficiency and production capacity

Veneer thickness: 1-3mm Veneer size: 1300*800-1000mm Speed: match with veneer peeling machine Weight: 2500kgs

Machine at clients factory
Until now we have exported many veneer machine to different country, and got good feedback
We insist offer good and strong peeling machine to every our clients

Packaging & Shipping

If you are interested, welcome contact us

---
