Quietest/Noiseless Textile Testing Equipment Martindale Abrasion and Pilling Tester Price

Product Description

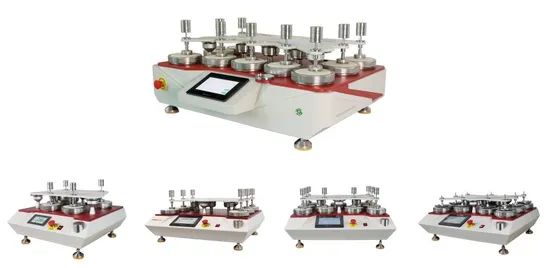

Martindale Abrasion and Pilling Tester YG401E
Aplication
Used for measuring the wear resistance, pilling and surface changes of woven, knitted, fluffy, coated, and nonwoven fabrics.
Standards
Wear-resisting:GB/T 21196.2,GB/T 13775,ISO 12947,ISO 17704,ISO 5470-2,ASTM D 4966,IWS TM 112,BS 2543,BS 3424-24,BS 5690,M&S P19,Next 18,SN 198529,TWC 112,JIS L 1096
Pilling :GB/T 4802.2,ISO 12945-2,ASTM D 4970,IWS TM 196,M&S P17,Next TM 26,SN 198525
Features
**Standard Lisharu curve: strictly ensure that the size curve meets the standard requirements (factory standard curve correction pen)
** The heavy hammer and key components are made of stainless steel, with beautiful appearance and durability.
** The pressing plate is made of special aluminum alloy, ensuring that it is not easy to deform after long-term use.
** Needle roller bearings reduce the friction force on the guide rod. Each table top is formed by a CNC grinding machine at one time, ensuring that each station is on the same plane and that the test results at each station are consistent.
**The speed setting range is 20~70r/min, which can be used as different test standards.
** Brushless motor drive, smooth and noiseless operation.
** Color touch screen, Chinese and English dual menu operation.
** There are two counting methods, positive counting and reverse counting, and each station can be individually locked.
Specifications
** Test station: 4 stations, 6 stations, 8 stations, 9 stations optional
** Counting range: 1~999999 times
** Friction stroke: 24 ± 0.5mm, 60.5 ± 0.5mm
** Weight of pressurized material:
A. Grinding head: 198 ± 2g
B. Weight of clothing sample: 395 ± 2g
C. Weight of furniture decoration sample: 594 ± 2g
Grinding head: 155 ± 1g
E. Stainless steel butterfly: 260 ± 1g
** Effective friction diameter of grinding block:
198g (1.96N) friction head φ 28.65±0.05mm
155g (1.52N) friction head φ 90±0.10mm
**Relative movement speed of gripper and grinding table: 47.5 ± 2.5r/min (adjustable from 20 to 70r/min)
** Weight of sample loading hammer: 2.5kg ± 0.5kg

Models	Y401E-4	Y401E-6	Y401E-8	Y401E-9
Power/Air	AC220V 50Hz 500W	AC220V 50Hz 500W	AC220V 50Hz 500W	AC220V 50Hz 500W
Demensions	600*550*330mm	780*620*330mm	780*620*330mm	780*620*330mm
Weight	77kg	107kg	120kg	130kg
