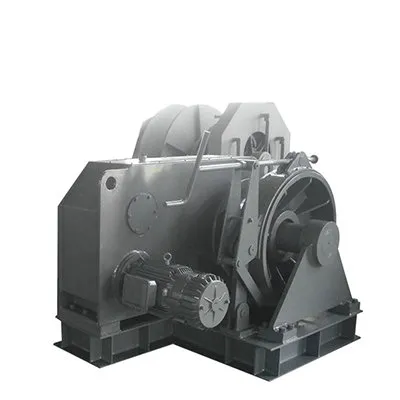

Manufacture with Three Drums Compact Hydraulic Towing Winch

Product Description

Our company produces various types of marine winches, ocean platform winches, and mining winches, covering hydraulic, electric, pneumatic, and diesel powered products. We have obtained certifications from major classification societies in the world, including BV, ABS, CCS, LR, DNV, etc.The product is exported to multiple regions such as Southeast Asia, the Middle East, Africa, South America, and Oceania.
Mooring winch
The pull of the mooring winches produced by our company ranges from 5 kN to 2000 kN.Power system can do hydraulic, electric, diesal. All our products can do customize, number of the drum, also can connect with anchor system add anchor chain wheel on it.

Main specification and parameters for hydraulic mooring winch
Name	Rated pull(kN)	Rated Speed(m/min)	Drum Capacity(m)	Motor Power(kW)
10kN hydraulic winch	10	≥12	¢11×150	5.5
20kN hydraulic winch	20	≥12	¢15×150	11
40kN hydraulic winch	40	≥15	¢17.5×151	22
50kN hydraulic winch	50	≥15	¢20.5×152	30
75kN hydraulic winch	75	≥15	¢26×153	45
100kN hydraulic winch	100	≥12	¢30×200	45
160kN hydraulic winch	160	≥12	¢32×250	75
200kN hydraulic winch	200	≥9.6	¢41×250	75
250kN hydraulic winch	250	≥9.6	¢44.5×250	90
315kN hydraulic winch	315	≥7.8	¢52×250	90
400kN hydraulic winch	400	≥7.8	¢56×250	110
450kN hydraulic winch	450	≥6	¢56×250	110
500kN hydraulic winch	500	≥6	¢58×250	110
560kN hydraulic winch	560	≥6	¢64×250	132
600kN hydraulic winch	600	≥6	¢64×250	132
650kN hydraulic winch	650	≥5	¢70×250	132
1000kN hydraulic winch	1000	≥4	¢85×250	132
1200kN hydraulic winch	1200	≥4	¢95×250	160
1500kN hydraulic winch	1500	≥4	¢95×250	200
1800kN hydraulic winch	1800	≥4	¢95×250	250
2000kN hydraulic winch	2000	≥4	¢100×250	270

Positioning winch
Positioning winches are mainly used for eight or four point positioning of engineering ships such as crane ships and pipeline laying ships, requiring high automation and a complete monitoring and operating system. Our company's design and manufacturing capacity for this type of product ranges from 30 tons to 300 tons, driven by electric variable frequency or electric-hydraulic, with characteristics such as constant tension, remote control, and multi-point mooring.
Towing winch
Towing winches are important equipment for towing or port towing operations. Our company produces towing winches with a pulling force ranging from 300 kN to 3000 kN. The drums are arranged in multiple forms, such as single drum, double drum (waterfall or symmetrical), and three drum, with a compact structure and small space occupation. The optional constant tension system allows this winch to play a greater role.
Anchor and mooring combined windlass
This product mainly consists of three parts: power unit, actuator, and control system. Suitable for various vessels such as bulk carriers, container ships, oil tankers, fishing boats, etc. Our company can design various large, medium, and small hydraulic or electric driven anchor and mooring combinations according to customer needs, which can meet the requirements of high tension, large rope capacity, and safe and reliable braking.
In addition, our company can also produce various forms of winches such as navigation anchors, capstan,slipway towing winch,friction winch,cable winches, trawl winches, and cargo winches to meet the different needs of customers. As long as you can provide detailed parameters, we can offer customized services.
Our After-sale Services-- within 24 Hours:
1.14 months warranty when products leave the factory, or 12 months warranty after installation
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.

---
