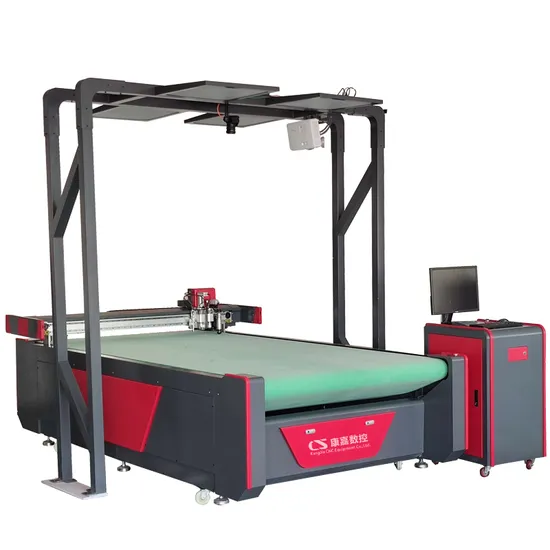

High Precision Automatic Digital Oscillating Knife Cloth Fabric Cutter Cutting Machine for Apparel Industry

Product Description

Product Description
Product Parameters

Model	KJPD-SL-1625	KJPD-SL-1825
Effective Cutting Area	2500*1600(L*W)	2500*1800(L*W)
Operating mode	automatic	automatic
Voltage	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ
Cutting speed	max 1400mm/s	max 1400mm/s
Cutting thickness	0.1-10mm	0.1-10mm
Power	9KW	9KW
Cutting accuracy	±0.1mm	±0.1mm
Cutting Materials	Nature leather ,pu ,fabric	Nature leather ,pu ,fabric
Location mode	Infrared laser	Infrared laser
Material fixed mode	Vac-sorb	Vac-sorb
Control system	PC	PC
Transmission interface	Network transmission	Network transmission
Drive motor	Panasonic	Panasonic
Rail	Brand :Yintai	Brand :Yintai
Safety device	Mechanical anti-collision device + infrared ray	Mechanical anti-collision device + infrared ray
Projector + camera	Overhead HD projector + Camera	Overhead HD projector + Camera

Cutting is smokeless, odorless, environmentally friendly and efficient. CCD intelligent recognition, edge patrol cutting.
The cutting accuracy is high, the error is within 0.1mm, and the cutting speed is fast, up to 1400mm/s at the fastest. Adopting the replaceable machine head design concept, the tool head is not fixedly welded and integrated, and can be replaced and equipped with tool heads with different functions according to actual work needs and business scope expansion.
It can be equipped with vibrating knives, drag knives, round knives, punching tools and other tools as well as drawing pens and other tools.
According to the different needs of different materials, functions such as writing and drawing lines, dotted line cutting, half-section cutting, and full-section cutting can be realized.
Equipped with PMI guide rails and integrated frame design, it works stably and has a long service life.
In order to ensure safety during use, it is specially equipped with emergency stop button, infrared shooting and anti-collision functions.
Detailed Photos
Application

Application	Suitable for flexible (non-metallic) materials
Clothing	Easily replace or add tool heads with different functions, such as vibration knives, circular knives, pneumatic knives, electric knives, bevel knives, V punches, circular punches, etc.
Luggage
Home decoration
Packaging materials
Non-woven fabrics
Car interior
Car cushions
Synthetic materials
Silicone
Rubber materials

Certifications

Company Profile

Quality: Integrated welding frame body,the preferred parts work stable,long service life. Service:
Lifetime after-sales, 24-hour standby service free update software,version and other regular visits.
Secure:
Infrared induction + mechanical collision avoidance system is safer and more assured.
Feature:
Eight kinds of cutter head interchange, meet a variety of materials cutting,punching.indentation,etc., One machine multi-purpose support multi-cutter head equipment customization.
Precision:
Higher cutting accuracy. The error is within 0.lmm.
Environmental protection:
Cold cutting dust-free, smoke-free,natural environmental protection does not destroy the material
Brain power:
Automatic cutting equipment, automatic plate holding software. Save materials and eliminate waste.
Packaging & Shipping

FAQ
Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut?
2)What's the largest size of original materials?
3)What's the thickness of materials?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance.

Q: 3. What should I do if the machine has any problem in future?
A: We supply online technical support and door to door service. Anything confuse you, just contact us.

Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms?
A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc

Q: 6.What's the package?
A: Film packaging+wooden case. Fumigation-free plywood case is also available.

---
