Basic Info.
Model NO.
BBA-5331HX with double soldering heads
Application
Electrical & Electronics Industry, Lighting Industry, Auto Industry, Communication Industry, Home Appliances
Product Name
Automatic Soldering Machine
Voltage
AC 110/220V 50/60Hz
Work Platform Size
500*300*300*100mm(X*Y*Y*Z)
External Connectior
RS232
Programming File Capacity
256MB, up to 999 Files
Maximum Load Weight
10kg (for Work Platform)
Repeat Positioning Accuracy
+/-0.02mm (X * Y * Z)
Tin Feeding Control
Precision Stepper Motor
Movement Speed(X,Y,Z)
0.1-800mm/Sec
Solder Wire Diameter
0.4, 0.6, 0.8, 1.0, 1.2, 1.6, 2.0 (mm)
Preheat Temperature
50~550 Degree
Transport Package
Standard Export Wooden Case Packing
Specification
500*300*300*100mm(X*Y*Y*Z)
Production Capacity
2000sets/Month
Packaging & Delivery
Package Size
105.00cm * 75.00cm * 100.00cm
Package Gross Weight
120.000kg
Product Description

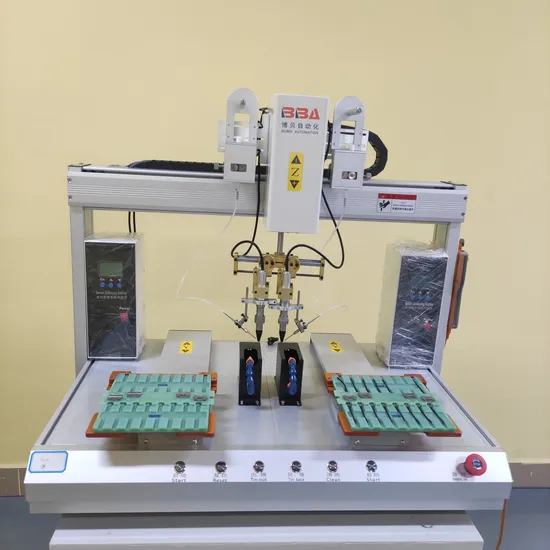

Robotic soldering iron machine, Automatic spot/drag welding machine equipment
BBA-5331HX is a table-top solering robot platform.This robot is purpose-built and standardied for automated applications that require point-to point soldering & drag soldering.
Advantages of soldering robot platform:
1.Automated soldering produces highly consist joints, improved quality, higher throughput and it requires less skill and training than hand soldering.
2.Operators can load and unload the parts in offline fixtures to minimize machine downtime.
3.Sturdy aluminum frame, 5-axis soldering robot, 300x300mm working area, 0.02mm repeatability,and air preparation & selectable 110/220VAC power connections. Product Description
Machine extenal accessories
Customization available
Specifications of soldering machine series
| Model | BBA-331HX
(Single Y platform) | BBA-5331HX
(Dual Y platforms) | BBA-6331HX
(Dual soldering systems) | BBA CUSTOMIZED |
| Voltage | AC 110/220V 50/60HZ |
| Power | 350W | 350W | 700W | To order |
| Movable range | X | 300mm | X | 500mm | X1/X2 | 500mm | To order |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm |
| Z | 100mm | Z | 100mm | Z | 100mm |
| R | 360° | R | 360° | R | 360° |
| Max moving speed | X | 600mm/s | X | 600mm/s | X1/X2 | 600mm/s | To order |
| Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s |
| Z | 400mm/s | Z | 400mm/s | Z | 400mm/s |
| R | 300 degree/s | R | 300 degree/s | R | 300 degree/s |
| Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order |
| Maximum Load Weight | 10KG (For Work Platform) | To order |
| Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order |
| Preheating Temperature Range | 0~ 550 degree | To order |
| Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6,2.0mm | To order |
| Tin feeding control | Precision stepper motor | To order |
| External Dimensions(L*W*H) | 70*60*85CM | 85*60*85CM | 100*60*85CM | To order |
| Weight | 65KG | 90KG | 120KG | To order |
