Bridge Saw 5 Axis Stone CNC Bridge Cutting Machine Stone Kitchen Counter Top Cutting Machine Quartz Stone Cutting Machine Water

Product Description

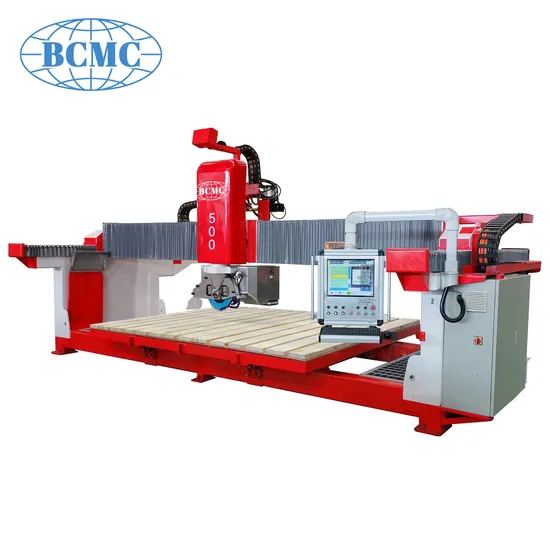

BCMC Machinery HKNC 500 is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handlling different kind of difficult work in one machine. Equiped with CNC touch screen system, USB port, WIFI connect, photograpging camera and vacuum lifter. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
Main Features
Equipped with 5 interpolated axis which can move in X, Y, Z axis together with the cutter head turning and rotation in one time. Updating with vacuum lifter to move the slab easily. CNC touch screen control system. Easy control and easy interactivity. Photograohing camera equiped. Helps for slab positioning and typeseting. Save time and reduce the waste of processing. Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing. Cutter head can moves in 90 degrees up and down. Rotate in 360 degrees horizontal. Handling chamfering cutting at any angles in automatic. USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine. Parameter

Configuration	Diameter of saw blade	mm	Φ400 - Φ500
	Dimension of working platform	mm	3500*2000(2100) mm
	Power of main motor	kw	26.4
	Power of tool slide reciprocating motor	kw	2
	Power of crossbeam shifting motor	kw	1.1
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	0.85
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	140
	Max. lifting travel of cutter	mm	250
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5800
	Dimension (L x W x H)	mm	5700x3260x2765

Detailed Information For Spare Parts

Control System
Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfil full automatic cutting from beginning to end without manual intervention
Digital Servo Motor
Italian Original ESA Servo motor to guarantee accurate positioning and cutting
Photo Slab System
Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material.
Vacuum Lifter
Suctions cups for lifting and moving cutting pieces in order to exploit the slabs as much as possible.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Slab Thickness Detector(Optional)
System to automatically detect the thickness of the slab.
Vein Matching Function(Optional)
Easily match up each vein and seam of your project
Final Products

Relevant Products You May Like

* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
