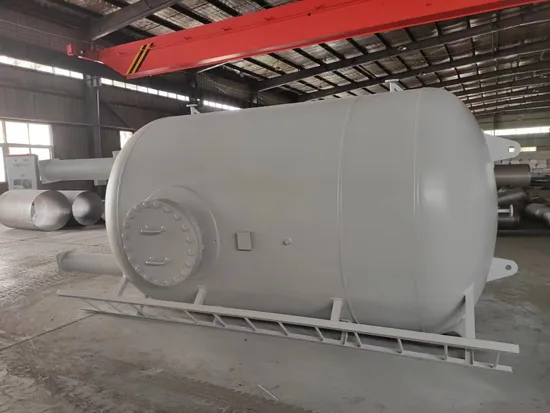

Custom Low Pressure Air Receiver with ASME U Stamp

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
air receiver
Function
Storage Pressure Vessel
Application
Gas
Material
Carbon Steel
Pressure
-0.1-20MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Corrosion Allowance
1mm
Default Color Number
Ral 7035
Paint Thickness
120μm
Transport Package
Iron Frame or Wooden Boxes
Specification
2L-100m³
Trademark
TK
Origin
China
HS Code
73110090
Production Capacity
10000

Product Description

CODE:ASME SECT.VIII DIV.1 2021 EDITION
Code Certification:ASME design +PED certified
Operating Pressure : -1-19MPa
Design Pressure :-1-20MPa
Temperature: -20-150ºC
Minimum design metal temperature(MDMT) at MAWP:-20ºC at 1MPa
Hydrostatic test pressure:1.43MPa at 0-48ºC
Medium name:compressed air
Corrosion allowance:1mm
Gross volume:0.001-100m³
Empty weight:5-20000kg
The products are designed and manufactured based on ASME VIII-1 code, meet the requirements of ASME, PED, AS1210 and other standards, as well as DOSH, CRN, EAC, MOM and other certification modes for you to choose. If you have any customized needs on the pressure vessel, you can contact us.
Zhejiang tank pressure vessel Co., Ltd. is a manufacturer specializing in the production of customized pressure vessels, we have ASME U and UM stamp authorization, and has obtained ISO9001-2015 quality system certification and PED Module H and Module H1 certificates issued by LRQA.
Standards or specifications that our products can comply with:
Product category Design Code Certifications
Air Receiver ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Liquid Receiver ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Separator ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Adsorption Tank ASME VIII-1/GB150 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
Heat Exchangers ASME VIII-1/GB150/GB151 ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS
