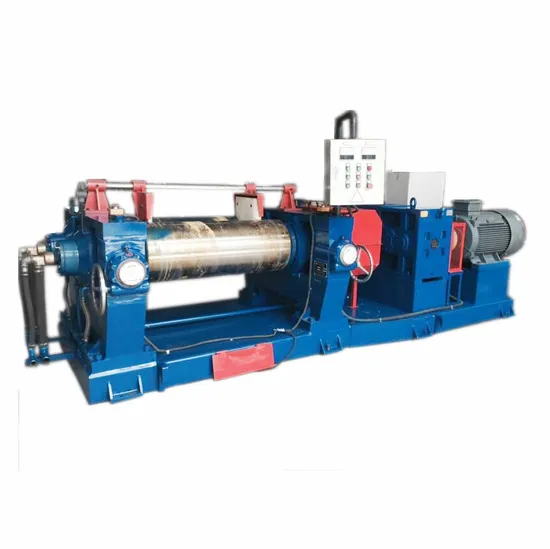

Rubber Mixing Machine Open Mixing Machine Xk-450

Product Description

Rubber Mixing Machine Open Mixing Machine XK-450

	Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter	mm	160	250	360	400	450	550	560-510	660	710
Roll working length		320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed	r/min	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls		01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space	mm	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity	kg	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power	kW	5.5	18.5	30	45	55	110	90	240	280
Dimensions(L× W× H)
L	mm	1133	2722	4200	4920	5405	6646	6270	7280	8185
W	mm	920	1115	1780	1780	1740	2736	2282	3400	3910
H	mm	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight	T	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

Salient Features:
1. Superior Mixing Performance.
2. Low Operating Cost with High Productivity.
3. Compact Construction, maximum Floor Utilization.
4. Latest Technology Update, Meets Current World Standards.
5. Maintenance Free.
6. Reliable and Experienced Service Back Up.
7. Easy to Install & Ready to Run.
8. No continuous Lubrication hence heavy saving on lubrication cost, wear & tear and maintenance.
9. Auto reversing electric Panel.
10. Simple & easy maintenance.
Test Before Delivery:
In order to save time and cost for customers, we produced rubber mixing mill at the factory wires between the motor and the control cabinet already connected, the customer's only need to connect the wires to the outside the control cabinet. After Rubber Mixing Mill complete installation will have the load test 4-6 hours to reduce debugging time and cost.
FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with cosco, for ensuring the goods arriving port on time.
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
