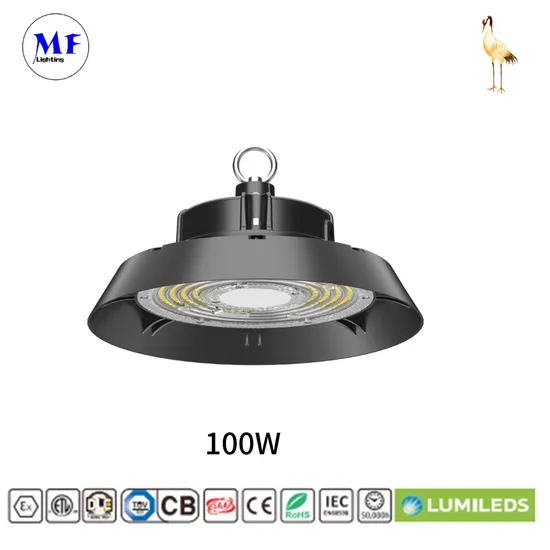

100W 150W 200W 240W 300W 1-10V /Dali Dimming Microwave Sensorwarehouse Factory Mechanical Workshop Emergency Kit UFO High Bay Light

Product Description

100W 150W 200W 240W 300W 1-10V /Dali Dimming Microwave SensorWarehouse Factory Mechanical Workshop Emergency kit UFO High bay LightProduct Description
Model No.IP66
Excellent waterproof
and dustproof effectIntegrated die-casting aluminumThicker aluminum materials Convection design for fasterheat dissipation
Emergency Time & Power
Options 1 - 10W for 3hrs
Options 2 - 20W for 1.5hr
Lightweight, impact resistant fixture is designed for easy and safe installation.
Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference
and ensure the lumen depreciation.
Multiple mounting options for a variety of applications, Pendant, loop.
High strength polycarbonate lens, achieve IK 08, Anti-UV, transmitiance > 94%
Multiple lighting distributions: 60°/90°/120°
Top brand LED chip and driver, ensure the product quality and life time
Ingress Protection Rating: IP66
Operation Temperature: -35ºC-+50ºC
Up to 140lm/W; 170lm/W;190lm/W
3000K, 4000K,5000K,5700K color temperature
CRI >80
Offered in 100, 150, 200 and 240W
Product dimension:
Photo metry
Product Parameters

Model No.	MF-UFO-L100w	MF-UFO-L150w	MF-UFO-L200w	MF-UFO-L240w	MF-UFO-L300w
lnput Voltage	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Rated Power	100W	150W	200w	240W	300W
ty of LED	210PCS*2835 38OPCS*2835	300PCS*2835 68OPCS*2835	420PCS*2835 1020PCS*2835	420PCS*2835 1020PCS*2835	616PCS*2835 136OPCS*2835
PF	>0.95	>0.95	>0.95	>0.95	>0.95
LED Brand	Lu-mileds	Lu-mileds	Lu-mileds	Lu-mileds	Lu-mileds
Luminous Flux	15000lm±5%	22500lm±5%	30000lm±5%	36000lm±5%	39000lm±5%
CRI	Ra>70,80,90	Ra>70,80,90	Ra>70,80,90	Ra>70,80,90	Ra>70,80,90
CCT	3000-6500K	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Beam Angle	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°
DriverBrand	Mw/SOSEN/ZH/PHI-LIPS	Mw/SOSEN/ZH/PHI-LIPS	Mw/SOSEN/ZH/PHI-LIPS	Mw/SOSEN/ZH/PHI-LIPS	Mw/SOSEN/ZH/PHI-LIPS
THD	<10%	<10%	<10%	<10%	<10%
IK Rating	IK08	IK08	IK08	IK08	IK08
lPRating	IP66	IP66	IP66	IP66	IP66
Life Span	50000Hrs	50000Hrs	50000Hrs	50000Hrs	50000Hrs
Size	260*111mm	306*122mm	362*127mm	362*127mm	408*132mm
N.w	1.70kg	2.20kg	2.70kg	2.70kg	4.50kg
G.w	2.20kg	2.70kg	3.20kg	3.20kg	4.8kg

Installation Instructions
Options
Application

Warehouses and distribution centers: These often have high ceilings and require strong light to allow employees to work safely while also facilitating inventory management.
Manufacturing and production facilities: In manufacturing lines, workshops or other production facilities, Gaobi lighting provides enough light to ensure that employees can see details and improve work efficiency and safety.
Sports facilities: gymnasiums, basketball courts, swimming pools and other large sports facilities often use high bay lighting, because it can provide a wide and strong light.
Commercial and retail Spaces: Some large retail stores, such as furniture stores or car showrooms, may use High Bay lighting to display their products.
Agricultural facilities: In some indoor agricultural facilities, such as greenhouses and farms, high bay lighting can provide enough light to support plant growth or animal life.
Public facilities: such as airports, railway stations, exhibition halls, etc., often use high bay lighting.

Certifications

Company Profile
Ming Feng Lighting Co.,Ltd is one of the leading LED light product, located in Guangdong Province, China. Established in year 2009 and has more than 14 years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED outdoor lamp. For the LED indoor light, we are producing the LED Triproof Lights, LED Vapor Tight Lights,LED down lights ,LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED sports lights and some of outdoor LED landscape light.With the rapid growth of our sales volume in the market, our R&D are expanding quickly to meet the market demands.Our main market is in European, South American and North American. Our factory locates between Shenzhen port and Guangzhou, it's convenient to visit our factory and delivery the container to all around the world based on Shenzhen port.
Ming Feng Lighting Co., Ltd warmly welcome all the partners visit our factory and share the ideas of the LED light. Ming Feng Lighting factory stays with you all the time to share the happiness of the LED light, let's work together to create an outstanding future.
HISTORY
Ming Feng Lighting Co.Ltd factory established in year 2009 and has 14 years great experience in exporting LED lighting products. We dedicate ourselves in the LED lighting area to develop the market-oriented LED light product. We are proud of that, our factory can manufacture the outstanding LED light with high quality standard.
SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients:
★ OEM/ODM Serivce
★ Photometric/IES file
★ Dialux simulation design
★ PCB Design/Driver Design
★ Heat Management/Optical Design
★ Industry Design
★ Market Support
★ 3D Printing
★ Multiple Listing/Private Label.
OUR TEAM
Ming Feng Lighting Co.Ltd has 200 employees, which include administrative staff 30 people, engineers 10, industrial designer 5, quality control department 8, and 150 people involve in production line as well warehouse and logistics department.
FAQ:
Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Tri-proof Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Tri-proof Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Tri-proof Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q6: How do I proceed with an order for the LED Tri-proof Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.
Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.

---
