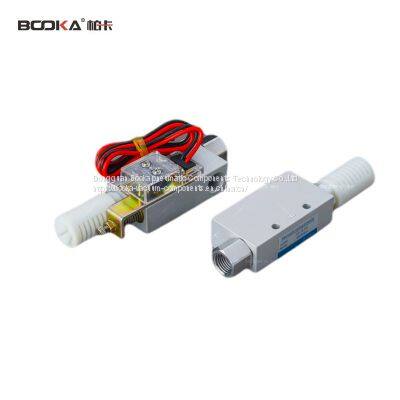

Vacuum generator Base Generator Ejector Suction Pumb Industry Vacuum Parts

Product Details

Product Description

Product Description
-Compact structure, light volume and low noise;
-Suitable for All industry

Dimensional chart
Model	Pipe diameter 0D	Tooth diameter R	A	B	C	E	ØF	ØG	L	Opposite side H	Nozzle diameter mm	Suction flow L/minANR	Maximum vacuum -Kpa	SmWeight g
VMB-05-601	Ø6	G1/8	7.2	54.6	16.7	25.5	16	12.4	58.2	17	0.5	11.5	91	45
VMB-07-601	Ø6		7.2	54.6	16.7	25.5	16	12.4	58.7	17	0.7	23	91	45
VMD-05-601	Ø6		7.2	45	16.7	25.5	16	12.4	48.6	17	0.5	11.5	91	45
VMD-07-601	Ø6		7.2	45	16.7	25.5	16	12.4	48.6	17	0.7	23	91	45

Dimensional chart
Model	Pipe diameter 0D	Tooth diameter R	A	B	C	E	ØF	ØG	L1	L2	Opposite side H	Nozzle diameter mm	Suction flow L/minANR	Maximum vacuum -Kpa	SmWeight g
VMB-05-601	Ø6	G1/8	6	53	16.5	16.4	16	11	57	32.3	17	0.5	11.5	91	45
VMB-07-601	Ø6		6	54.6	16.5	16.4	16	11	57	32.3	17	0.7	23	91	45
VMD-05-601	Ø6		6	43.4	11.5	25.5	16	11	47	32.3	17	0.5	11.5	91	45
VMD-07-601	Ø6		6	43.4	11.5	25.5	16	11	47	32.3	17	0.7	23	91	45

---
