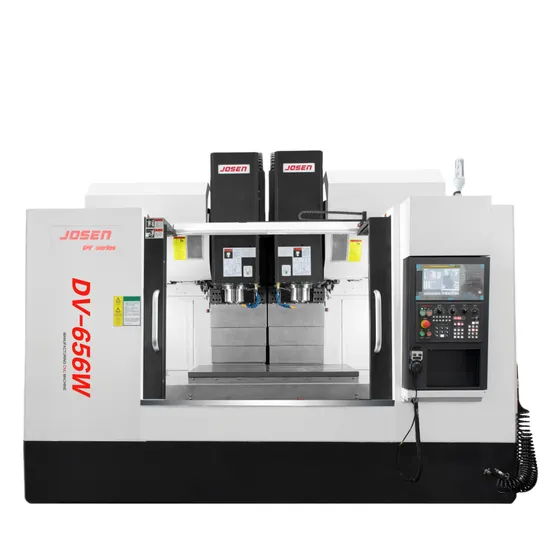

Unlock The Ultra-High Cost-Effective, Twin-Spindle Vertical Machining Centers, Small Investment and Big Output! DV-656W

Product Description

Product Description

1.This model is suitable for communication electronics, automobile and locomotive parts production, and automated parts processing.

2.Combined with FEM analysis, the main components of the base, column and saddle all adopt unique high rigidity structure, which makes the internal force structure of the whole machine more optimized and ensures the rigidity and thermal variation stability of the whole machine.

3.Three axes linear precision rolling guide design, fast acceleration and deceleration response, effectively improve the machining efficiency and machining accuracy of the machine, even under heavy load is also excellent.

4.The front end of the spindle is equipped with a circular water jet to allow effective cooling of the cutting tool, while the internal air curtain with negative pressure extends the service life and ensures reliable use of the spindle for long time and high-speed operation.

5.The stable base and column with lightweight motion axis components effectively ensure the stability of the machine during high acceleration and deceleration movements.

Product Parameters

Main technical parameters	Unit	DV-656W	DV 855	DV 1166	DV 1266
X-axis travel	mm	650(Total travel 1000)	800	1100(Total travel 1000)	1200
Y-axis travel	mm	620	500	620	620
Z-axis travel	mm	Z1: 600 Z2: 600	550	600	600
Distance from nose of spindle to table surface	mm	125-725	120-670	125-725	125-725
Working table size (X*Y)	mm	1300*600	1000*500	1200*600	1300*600
Table T-slot size (width * number of slots * spacing)	mm	18*5*100	18*5*80	18*5*100	18*5*100
Max. loading capacity of working table	KG	1000	600	900	1000
Spindle motor (continuous/30 minutes)	kw	11/15	7.5/11	11/15	11/15
Spindle speed	rpm	10-10,000	10-10,000	10-10,000	10-10,000
Spindle inner taper bore		BT40	BT40	BT40	BT40
X/Y/Z axis motors	kw	3/3/3/3	1.8/1.8/3	2003/3/3	2003/3/3
Rapid feed rate (X/Y/Z)	mm/min	36000/36000/36000/36000	48000/48000/48000	36000/36000/36000	36000/36000/36000
Fastest cutting feed rate	mm/min	1-10,000	1-10,000	1-10,000	1-10,000
Tool magazine capacity (standard/optional)	set	24/24	24	24/30	24/30
Tool magazine form		Knife arm type	Tool disc type	Knife disc type	Knife disc type
Tie rod bolts form		MAS-P40-1(45°)	MAS-P40-1(45°)	MAS-P40-1(45°)	MAS-P40-1(45°)
Maximum tool diameter of adjacent tools		Ø80	Ø80	Ø80	Ø80
Max. tool diameter of empty adjacent tool		Ø150	Ø150	Ø150	Ø150
Maximum tool length	mm	300	300	300	300
Maximum tool weight	kg	8	7	8	8
Positioning accuracy (full stroke)	mm	±0.005	±0.005	±0.005	±0.005
Repeat positioning accuracy (full stroke)	mm	±0.003	±0.003	±0.003	±0.003
Controller		FANUC 0I-MF	FANUC 0I-MF	FANUC 0I-MF	FANUC 0I-MF
Water tank capacity	liter	270 (rear)	220 (rear drainage)	270 (rear)	270 (Rear row)
Pneumatic pressure requirements	kg/cm2	6	6	6	6
Power Specifications		AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	50	25	50	30
Floor space (L*W)	mm	3420*3150 (rear row)	2500*2800 (rear row)	2780*3150 (rear row)	3250*3150 (Rear row)
Machine height (maximum)	mm	2865	2800	2865	2865
Machine weight	T	7.5	5.1	6.5	6.6

Company Profile
Detailed Photos

Our Advantages
Participation in exhibitions

Packaging & Shipping
FAQ
FAQ:
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
