Product Description
Product Description

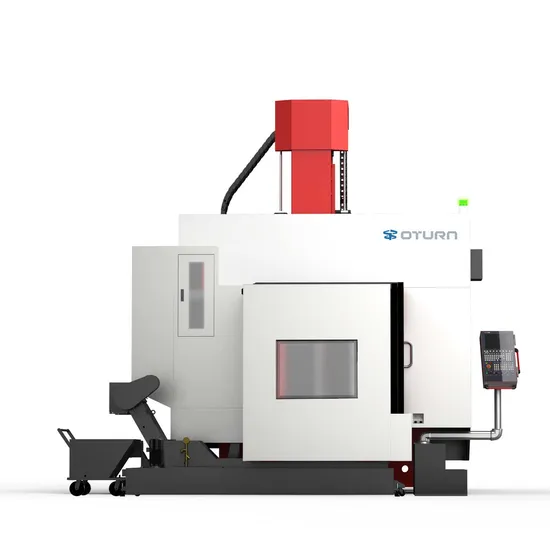

The high-speed and high-performance five-axis gantry machining center GF2020-5X has the characteristics of high rigidity, high precision and high efficiency processing. The integrated gantry design increases the contact area with the column mounting base, which can greatly enhance the bending and torsional strength of the gantry; the workbench adopts a reasonable slider span and is surface quenched to make the workbench evenly stressed and improve the hardness. ; The base is designed with golden ratio reinforced ribs to ensure uniform stress on the guide rail support surface and ensure the overall accuracy of the workbench operation; the whole machine adopts the best structural design to provide the best overall stability performance.
The three-axis rapid displacement is 36/30/30m/min, the T-T tool change time is only 2.9S, the tool magazine is fully loaded, 24-hour tool change without alarm, and the 3-dimensional inspection of each machine's trial processing sample has passed, ensuring the machine tool's quality after leaving the factory. High efficiency and continuous stability. It is suitable for various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding and boring of valves, cams, molds, plates and boxes in the manufacturing industry. Tapping and other processing processes are more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be entered into automatic lines for mass production.
Adopting Siemens ONE system, 19-inch ultra-large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the data processing of the CNC system Ability and control performance facilitate the fast and efficient transmission and online processing of large-capacity programs.
Product Parameters
Item | unit | specification |
worktable | Workbench (length × width) | mm | 2000×1100 |
| T-shaped groove (number of grooves-width×pitch) | mm | 7-22×150 |
| Maximum load of workbench | kg | 2000 |
Feed | X/Y/Z axis rapid displacement | m/min | 36/30/30 |
| B/C axis maximum speed | rmp | 60/60 |
| cutting feed rate | mm/min | 1-12000 |
Travel | X/Y/Z axis travel | mm | 2000×2000×800 |
| Door width | mm | 1600 |
| Distance from spindle end face to worktable | mm | 160-960 |
| The distance from the 90° center of the A-axis to the work surface | mm | 420-1120 |
| Spindle left and right 90° end face to end distance (Y direction) | mm | 1480 |
| Spindle front and rear 90° end face to end distance (X direction) | mm | 1480 |
Spindle | Spindle taper hole | mm | HSK-A63 |
| Spindle maximum speed | r/min | 18000 |
| Spindle motor power (S1/S6 40%) | kW | 35/49.5 |
| Spindle motor torque (S1/S6 40%) | N.m | 60.7/86 |
Tool | Tool magazine storage capacity | pcs | 36 |
| Tool exchange time (T-T) | S | 2.9 |
| Maximum tool diameter/length | mm | 120/400 |
| Maximum tool weight | kg | 8 |
Three axis | X-axis guide rail | mm | 45/4 roller |
| Y-axis guide rail | | 55/2 roller |
| Z-axis guide rail | | 55/3 roller |
| X-axis screw | mm | R50×16 |
| Y-axis screw | mm | R50×16 |
| Z-axis screw | mm | R50×12 |
Accuracy | Linear axis positioning accuracy | mm | ±0.005/300mm |
| Repeatable positioning accuracy of linear axis | mm | ±0.003/300mm |
| Rotary axis positioning accuracy | arc-sec | 8 |
| Rotary axis repeat positioning accuracy | arc-sec | 6 |
Lubrication system | Lubrication unit capacity | L | 10 |
| Lubrication type | | Thin oil lubrication |
cutting fluid | Displacement of water tank volume | L | 850 |
| Center outlet tank volume | L | 200 |
other | air demand | kg/c | ≥6 |
| Air flow | mm3/min | ≥0.5 |
| Power supply: three-phase AC | | 380V±10%,50Hz |
| Air pressure | MPa | 0.6 |
| Machine weight (combined) | t | 20 |
| Overall dimensions (L × W × H) | mm | 6100*4890*5127 |
