Product Details
Product Description
Product Description

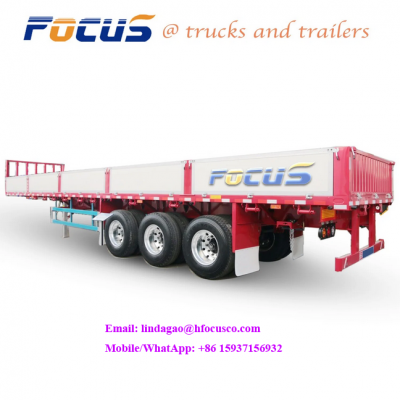

Hot selling Platform Trailer/Semitrailer/ Semi Trailer with side board
| Item | Unit | Quantity | Notice |
| Overall size |
|
| 14500*2500mm
Detail according to confirmed drawing |
| Fence | Set | 1 | 0.6m height side board |
| Axle | Piece | 3 | 13 T axle,Widen brake pad 220mm |
| Tyre | Piece | 12 | 12R22.5-16PR, without spare tire |
| Rim | Piece | 12 | 9.0*22.5 Aluminum |
| Leaf spring | Sets | 6 | 90width*10 pieces*13mm thickness |
| Braking system | Set |
| 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. |
Electrical system | Set | 1 | 24 volt electrical system.7 pin electrical, LED lights, connector.Parking .Stop,reverse,number plate and indicator lights.Rear lights conform to European standard,rear front and side reflectors |
| Suspension | Set | 3 | Standard type |
| Relay valve | Whole vehicle | 1 | WABCO |
| Landing gear | Pair | 1 | Standard 16T, two-speed operation |
| Kingpin | Piece | 1 | BAO HUA welded type, 90# |
| Chamber | Piece |
| Double T30/30 on rear two axles,T30 on 1st axle |
| Side beam |
|
| 140# channel steel 2.5mm) |
Floor |
|
| 1.6mm high-tensile steel plain plate |
| Cross beam |
|
| Square tube 80*40 |
| Upper and lower wing plates |
|
| 10/10mm |
| Tool box |
| 1 | 2.5m/1 |
Main beam |
|
| Main beam500mm,webplate:5mm |
| Reflectors |
|
| Red triangle reflectors at the rear of the trailer and on side |
| Shotblasting and paint |
|
| Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.Total 80-100 microns.
High quality painting |
| Color |
|
| According to your detail RAL code color |
The dropside / sidewall trailer is for different kind of cargo long distance transportation, from boxes to bulk cargo. The side panel can be opened, more convenient to unload cargo. This trailers is widely used by transportation companies in the logistics industry. The shape of the side panel can be customized.
1-trailers can be for containers shipping, boxes, bags, steel bars, pipes, and other cargo transportation.
2-Axles number:2 3 4 axles even more.
3-Main beam:500mm height
4-material of the main beam:Q345
5-Suspension:Spring suspension, Rigid, single point, bogie or air suspension
6-Jost landing gear, FUWA axles and Tri-angle tires
7-extendable or sliding type optional
Our dropside trailers advantages:
**Modern design:Double-Groove vertical van, light-weight I beam, arched form longitudinal beams, that make the trailers
Structure super strong and superlight;
**Sound Adaptability:Passed the special processing, the overall frames of the traielrs can stand the actual test of various
Road conditions.
**Superior Material selection:The raw materials are bought from top 5 Steel Mills, and all of other parts are all from top
Suppliers also, like Triangle tyres, Jost landing gear, WEBCO relay valve, we have strict selection requirement for vendors.
**Top configurations:Ensure every trailers with high configurations to decrease the maintaince for clients, and improve the
Trailers with longer service time
>>
