OEM Wuyi Factory Roller Chain-Manufacturer Concrete Mixer High Pressure Transmission Chains

Product Description

Product Description

DIN/ISO	ANSI	Pitch	Roller	Width	Pin	Pin		Lnner	Plate	Ultimate	Average	weight
KIN/ISO	ANSL			between	diameter	length		plate	thick	tensile	tensile	per
Chain	Chain			inner plates				depth	-ness	strength	strength	meter
No.	No.	P	d1	b1	d2	L	Lc	h2	T	Q	Q0	q
			max	min	max	max	max	max	max	min
		mm	mm	mm	mm	mm	mm	mm	mm	kN/LB	kN	kg/m
*03C	*15	4.7625	2.48	2.38	1.62	6.1	6.9	4.3	0.6	1.80/409	2	0.08
*04C-1	*25	6.35	3.3	3.18	2.31	7.9	8.4	6	0.8	3.50/795	4.6	0.15
*06C-1	*35	9.525	5.08	4.77	3.58	12.4	13.17	9	1.3	7.90/1795	10.8	0.33
085-1	41	12.7	7.77	6.25	3.58	13.75	15	9.91	1.3	6.67/1516	12.6	0.41
08A-1	40	12.7	7.95	7.85	3.96	16.6	17.8	12	1.5	14.10/3205	17.5	0.62
10A-1	50	15.875	10.16	9.4	5.08	20.7	22.2	15.09	2.03	22.20/5045	29.4	1.02
12A-1	60	19.05	11.91	12.57	5.94	25.9	27.7	18	2.42	31.80/7227	41.5	1.5
16A-1	80	25.4	15.88	15.75	7.92	32.7	35	24	3.25	59.70/12886	69.4	2.6
20A-1	100	31.75	19.05	18.9	9.53	40.4	44.7	30	4	88.50/20114	109.2	3.91
24A-1	120	38.1	22.23	25.22	11.1	50.3	54.3	35.7	4.8	127.00/28864	156.3	5.62
28A-1	140	44.45	25.4	25.22	12.7	54.4	59	41	5.6	172.40/39182	212	7.5
32A-1	160	50.8	28.58	31.55	14.27	64.8	69.6	47.8	6.4	226.80/51545	278.9	1.1
36A-1	180	57.15	35.71	35.48	17.46	72.8	78.6	53.6	7.2	280.20/63682	341.8	13.45
40A-1	200	63.5	39.68	37.85	19.85	80.3	87.2	60	8	353.80/80409	431.6	16.15
48A-1	240	76.2	47.63	47.35	23.81	90.5	103	72.39	9.5	51.30/115977	622.5	23.2

DIN/ISO	Pitch	Roller	Width	Pin	Pin		Lnner	Plate	Ultimate	Average	weight
KIN/ISO			between	diameter	length		plate	thick	tensile	tensile	per
Chain			inner plates				depth	-ness	strength	strength	meter
No.	P	d1	b1	d2	L	Lc	h2	T	Q	Q0	q
		max	min	max	max	max	max	max	min
	mm	mm	mm	mm	mm	mm	mm	mm	kN/LB	kN	kg/m
04B-1	6	4	2.8	1.85	6.8	7.8	5	0.6	3.2/682	3.2	0.11
05B-1	8	5	3	2.31	8.2	8.9	7.1	0.8	5.0/1136	5.9	0.2
*06B-1	9.525	6.35	5.72	3.28	13.15	14.1	8.2	1.3	9.0/2045	10.4	0.41
08B-1	12.7	8.51	7.75	4.45	16.7	18.2	11.8	1.6	18.0/4091	19.4	0.69
10B-1	15.875	10.16	9.65	5.08	19.5	20.9	14.7	1.7	22.4/5091	27.5	0.93
12B-1	19.05	12.07	11.68	5.72	22.5	24.2	16	1.85	29.0/6591	32.2	1.15
16B-1	25.4	15.88	17.02	8.28	36.1	37.4	21	4.15/3.1	60.0/13636	72.8	2.71
20B-1	31.75	19.05	19.56	10.19	41.3	45	26.4	4.5/3.5	95.0/21591	106.7	3.7
24B-1	38.1	25.4	25.4	14.63	53.4	57.8	33.2	6.0/4.8	160.0/36364	178	7.1
28B-1	44.45	27.94	30.99	15.9	65.1	69.5	36.7	7.5/6.0	200.0/45455	222	8.5
32B-1	50.8	29.21	30.99	17.81	66	71	42	7.0/6.0	250.0/56818	277.5	10.25
40B-1	63.5	39.37	38.1	22.89	82.2	89.2	52.96	8.5/8.0	355.0/80682	394	16.35
48B-1	76.2	48.26	45.72	29.24	99.1	107	63.8		560.0/127272	621.6	25

Product Description

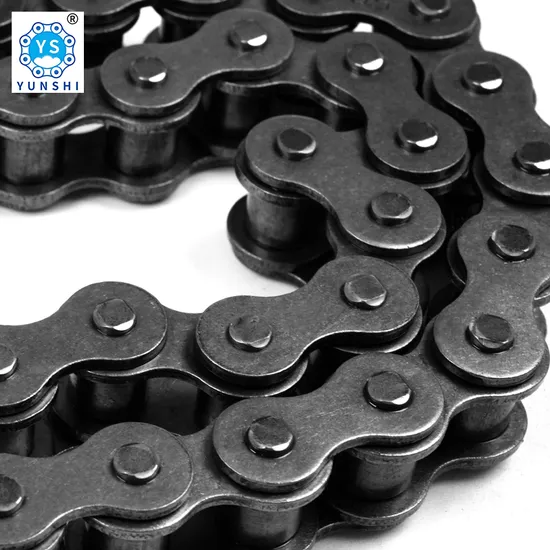

Detailed Photos
WHY CHOOSE US
Comprehensive Product Portfolio We produce and supply a wide range of power transmission products including drive chains, leaf chains, conveyor chains, agricultural chains, sprockets, and couplings. This one-store-for-all shopping experience will significantly reduce your searching costs while guarantee youfind what you want at one click. Value Choice Products Our products are the best combination of quality and price, and you get what you want within your budgets Seasoned Sales Associates and Engineers We have 15 seasoned sales associates and five engineers; on our team at your disposal any time when you need a helping hand. They are well trained with industry know-now and will always respond to your requests within 24 hours. 100% Customer Retention Rate Our regular customers from overseas come back not just for our premium quality products, but for the superior services that we've provided over the years. FAQ
FAQ
1. Are you a manufacturer or trade Company? We are a factory founded in 2009 with a trade team for international service. 2. What terms of payment do you usually use? T/T 30% deposit and 70% against document, Western Union, L/C at sight 3. What is your lead time for your goods? Normally 35 days after confirmed order. 30 days could be available in the low season for some items (during May to July), and 45 days during the new year and hot season ( Jan to March).
4. Samples For customers who need sample confirmation before ordering, please bear in mind that the following policy will be adopted: 1) All samples are free of charge with a maximum value not exceeding USD 100. 2) The courier cost for the first-time sample sending will be charged by the consignee. We will send the samples with freight to be collected. So please inform your account with FedEx, UPS, DHL, or TNT so that we can proceed promptly. 3) The first-time courier cost will be totally deducted from the contract value of the trial cooperation.
4) OEM/ODM are both available.

---
