High Precision Hot Sale, CNC Lathe, Conventional Lathe Cwl, Machine Tool

Product Description

Product Description

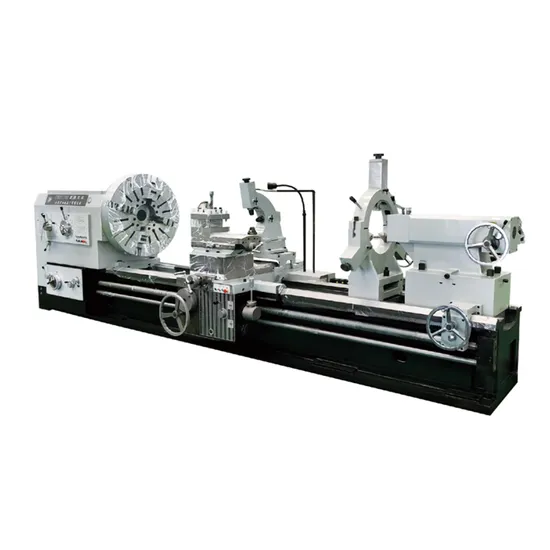

UNIVERSAL ENGINE LATHE INTRODUCTION
This series of heavy-duty general lathe mainly undertakes all kinds of turning work. It can turn the end face, outer circle, inner hole and metric thread, inch thread, module thread, diametral pitch thread of various parts. The upper carriage can be used to cut the short cone separately, and the upper carriage can be used to cut the long cone in combination with the longitudinal feed. In addition, it also has the functions of drilling nesting and boring. The machine tool has high power, high speed and strong rigidity. Hard alloy tools can be used for powerful turning to process various ferrous and non-ferrous metals.
FEATURES
• One-piece bed adopts high strength iron to ensure rigidity and precision
• Ultrasonic frequency quenched guide-ways ensure good wear-resista nee
• Headstock gears hardened and ground to achieve precision and low noise
Product Parameters

		SPECIFICATION	UNIT	CW61125L	CW61140L	CW61160L
Capacity		Swing over bed	mm	1300	1500	1700
		Swing over cross slide	mm	900	1100	1300
		Distance between centers	mm	3000-10000	3000-10000	3000-10000
		Guideway wicth	mm	1100	1100	1100
		Max, load capacity	T	10	10	10
Spindle		Spindle bore	mm	100	100	100
		Soindle bore taper		Meric φ120/MT6	Meric φ120/MT6	Meric φ120/MT6
		Spindle nose type		1:30	1:30	1:30
		Spindle speed steps		FWD,21 steps	FWD,21 steps	FWD,21 steps
		Soindle speed range	rpm	3.15-315	3.15-315	3.15-315
		Chuck	mm	φ1250 4-jaw manua	φ1250 4-iaw manua	φ1400 4-jaw manua
Turret		Turret/todl post		Manual turret 4 position	Manual turret 4 position	Manual turret 4 position
		Tool shank size	mm	45×45	45×45	45×45
Feed		Xaxis trave	mm	850	850	850
		Z axis travel	mm	1350---9750	1350---9750	1350---9750
		Xaxis feed grade/range	mm/r	56/0.05-6	56/0.05-6	56/0.05-6
		Zaxis feed gradetange	mm/r	56/0.1-12	56/0.1-12	56/0.1-12
		Xaxis rapid traverse	mm/min	1870	1870	1870
		Z axis rapid traverse	mm/min	3740	3740	3740
		Melric thread grade/range	mm	44/1-120	44/1-120	44/1-120
		Inch thread gradefrange	T.P.I	31/28-3/8	31/28-3/8	31/28-3/8
		Module thread grade/range	mm
		DP thread grade/range	D.P.
Tailstock		Tailstock quill diameter	mm	φ260	φ260	φ260
		Tailstock quill taper		80	80	80
		Tailstock quill trave	mm	300	300	300
Motor		Main spindle motox	kW	30	30	30
		Rapid traverse motor	kW	1.5	1.5	1.5
		Coolant pump motor	kW	0.125	0.125	0.125
Dimension		Width x Height	mm	2000x1950	2250×2050	2250×2150
		Length	mm	6400--13400	6400--13400	6400--13400
Weigh		Net weight	T	22.6--- (1m1050Kg)	23,3--- (1m1050Kg)	24. 1--- (1m1050Kg)
Please note: machine bed length can customize according to real work demand,

		SPECIFICATION	UNIT	CW61180L	CW61200L
Capacity		Swing over bed	mm	1900	2100
		Swing over cross slide	mm	1500	1700
		Distance between centers	mm	3000-10000	3000-10000
		Guideway width	mm	1100	1100
		Max, load capacity	T	10	10
Spindle		Spindle bore	mm	100	100
		Spindle bore taper		Metric φ120/MT6	Metric φ120/MT6
		Spindle nose type		1:30	1:30
		Spindle speed steps		FWD,21 steps	PWD, 21 steps
		Spindle speed range	rpm	3.15-315	3,15-315
		Chuck	mm	φ1600 4-jaw manual	φ1600 4-jaw manual
Turret		Turret/tool post		Manual turet 4 position	Manual turret 4 position
		Tool shank size	mm	45×45	45×45
Feed		Xaxis travel	mm	850	850
		Z axis travel	mm	1350---9750	1350---9750
		X axis feed grade/range	mm/	56/0.05-6	56/0.05-6
		Zaxis feed graderange	mm/r	56/0.1-12	56/0.1-12
		Xaxis rapid traverse	mm/min	1870	1870
		Z axis rapid traverse	mm/min	3740	3740
		Metric thread grade/range	mm	44/1-120	44/1-120
		nch thread gradetange	T.P.I	31/28-3/8	31/28-3/8
		Module thread graderange	mm
		DP thread grade/range	D.P.
Tailstock		Tailstock quill diameter	mm	φ260	φ260
		Tailstock quill taper		80	80
		Tailstock quill trave	mm	300	300
Motor		Main spindle motor	kW	37	37
		Rapid traverse motor	kW	1.5	1.5
		Coolant pump motor	kW	0.125	0.125
Dimension		Width x Height	mm	2300x2250	2300x2250
		Length	mm	6400--13400	6400--13400
Weight		Net weight	T	24.9--- (1m1050Kg)	24.9--- (1m1050Kg)
Please note: machine bed length can customize according to real work demand
