High Speed Shear Mixer for Mixing Powder

Product Description

High speed shear mixer description:
1. Application
1. GH vertical high-speed mixer is specially designed for powder or low-humidity materials, mixing efficiently, uniformly, and without dead ends.
2. The machine can mix fine powder, agglomerated or more than two kinds of powder, and materials with a certain amount of water. For example, it can also achieve the mixing effect for the additives with trace phases (referring to the mixing of ingredients with a small amount of addition).

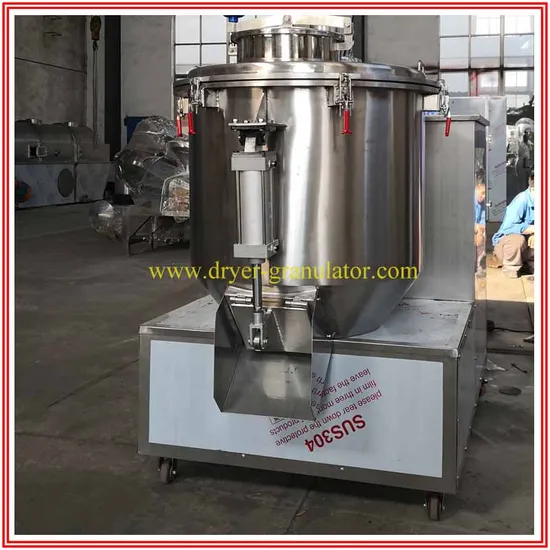

overall picture
Inside structure
2.Features:
The structure of a horizontal cylinder, and a rational structure.
Inflatable seal CV, cleaning can be switched into the water.
Smooth operation,reliable performance,easy to operate.
In the same closed containers to be in line with GMP standards.
The whole operation with strict security measures of protection.

3. Constituent part:
This machine is consist of mainframe,cylinder,stirring system,cutting system,cylinder cover,discharge device,electrical control system,water system and so on. The process:1,put the raw material into the cylinder,then pour into the adhesive or liquid.2,put the raw material or other adhesive together into the cylinder: minxing and cutting by knife.

4.Technical parameters

Name	200	350	500	600	1000
Capacity(L)	200	350	500	600	1000
Kg/batch	80	120	230	280	350
Mixing power (kw)	7.5	11	15	18.5	30
Cutting power (kw)	1.5	2.2	4	5.5	7.5

---
