Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Automotive Industry, Shoemaking Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Semiconductor Laser
Laser Technology
Laser Control Fault Cutting
Dimension
4800*2350*1900mm
Laser Source
Max/Raycus/Reci/Ipg
Transport Package
Wooden Case
Specification
3015 cutting range
Production Capacity
100PCS/Year
Packaging & Delivery
Package Size
480.00cm * 225.00cm * 130.00cm
Package Gross Weight
3000.000kg
Product Description
Product Description

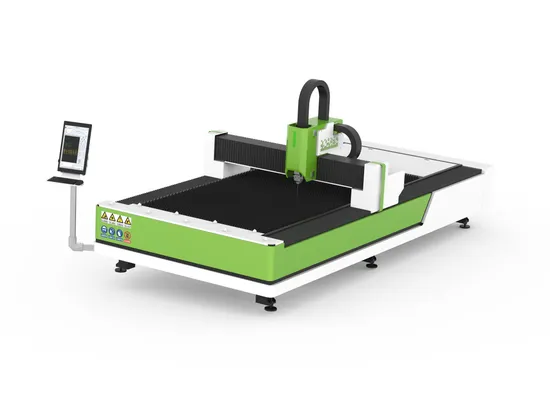

3015 single table laser cutting machine has a small overall footprint and high cost performance. As an economical and practical laser cutting machine, it can be used by the majority of medium and thin plate customers who pursue quality and have limited budgets.
Features:
- A single cutting platform, the overall equipment is compact.
- The operation panel and the electric control are integrated into one design, independent of the cutting table, and the operation is more convenient.
- A variety of cutting formats are available to meet the blanking requirements of different sizes of plates.
Detailed Photos
Product Parameters
Technical Parameters
Laser power | 1000-2000W |
Model | DPX-D3015 | DPX-D4020 | DPX-D6025 |
Cutting range | 3000 × 1500mm | 4000 × 2000mm | 6000 × 2500mm |
Cutting and focusing method | Manual / automatic focusing |
Machine running accuracy | Acceleration: 1.0G |
Maximum speed: 80m/min |
Axial positioning accuracy of worktable: ± 0.05mm/m |
Repeated positioning accuracy of worktable: ± 0.03mm/m |
Laser power | 3000-6000W |
Model | DPX-D3015 | DPX-D4020 | DPX-D6025 | DPX-D8025 |
Cutting range | 3000 × 1500mm | 4000 × 2000mm | 6000 × 2500mm | 8000 × 2500mm |
Cutting and focusing method | Auto focus |
Machine running accuracy | Acceleration: 1.2G |
Maximum speed: 100m/min |
Axial positioning accuracy of worktable: ± 0.05mm/m |
Repeated positioning accuracy of worktable: ± 0.03mm/m |
Laser power | 12000-30000W |
Model | DPX-D6025 | DPX-D8025 | DPX-D10025 | DPX-D12025 |
Cutting range | 6000 × 2500mm | 8000 × 2500mm | 10000 × 2500mm | 12000 × 2500mm |
Cutting focus method | Auto focus |
Machine running accuracy | Acceleration: 1.8G |
Maximum speed: 150m/min |
Axial positioning accuracy of worktable: ± 0.05mm/m |
Repeated positioning accuracy of worktable: ± 0.03mm/m |
Cutting Performance
Material | 1000W cutting performance | 1500W cutting performance | 2000W cutting performance |
Carbon steel | stable cutting | ≤ 8mm | stable cutting | ≤ 12mm | stable cutting | ≤ 16mm |
Limit cut | 12mm | Limit cut | 16mm | Limit cut | 20mm |
Stainless steel | stable cutting | ≤ 4mm | stable cutting | ≤ 6mm | stable cutting | ≤ 7mm |
Limit cut | 6mm | Limit cut | 8mm | Limit cut | 10mm |
Material | 3000W cutting performance | 4000W cutting performance | 6000W cutting performance |
Carbon steel | stable cutting | ≤ 20mm | stable cutting | ≤ 22mm | stable cutting | ≤ 25mm |
Limit cut | 25mm | Limit cut | 25mm | Limit cut | 30mm |
Stainless steel | stable cutting | ≤ 9mm | stable cutting | ≤ 10mm | stable cutting | ≤ 14mm |
Limit cut | 12mm | Limit cut | 14mm | Limit cut | 20mm |
material | 12000W cutting performance | 15000W cutting performance | 20000W cutting performance |
carbon steel | stable cutting | ≤ 35mm | stable cutting | ≤ 40mm | stable cutting | ≤ 45mm |
Limit cut | 50mm | Limit cut | 60mm | Limit cut | 70mm |
Stainless steel | stable cutting | ≤ 30mm | stable cutting | ≤ 35mm | stable cutting | ≤ 40mm |
Limit cut | 50mm | Limit cut | 70mm | Limit cut | 80mm |
Application
Certifications
Our Advantages
After Sales Service
1. 7*24 hour2. Response time<12 hours3.Online support4.Product replacement5. Customer field service6. Backup products during repairing for long time cooperators* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3. Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
>>
