Spot UV coating sample.

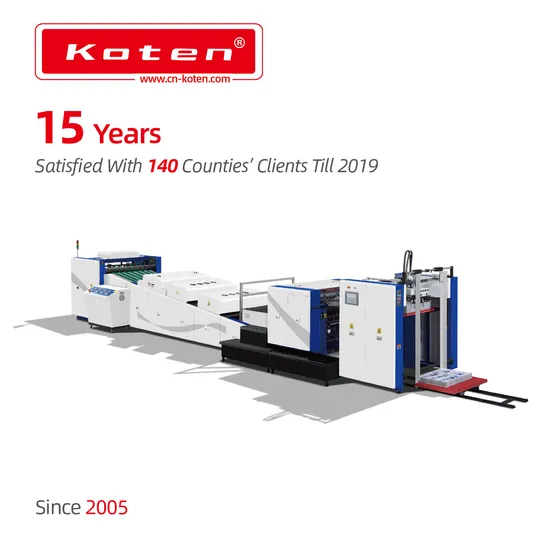

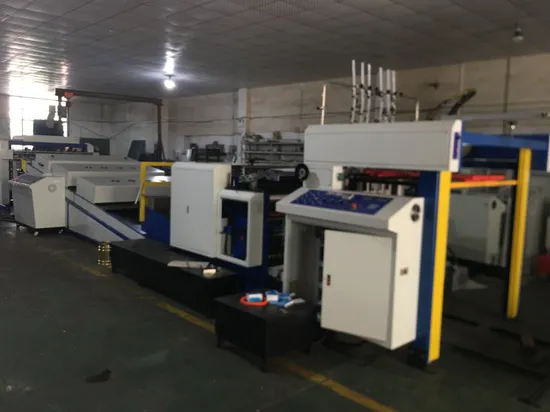

| High-speed U.V Spot and Overall Coating Machine For Solvent Base |
| Model: SD-1040 |
| Standard Equipments Consists Of: |
| (1). | Automatic Stream Feeder. |
| | Standard Features: |
| | 1. | Max loading height: 1100mm |
| | 2. | Lower-sway front guide; |
| | 3. | Continuous rotation press-wheel side guide; |
| | 4. | Mechanical and electrical double sheet detector; |
| | 5. | Mis-sheet, sheet-misalignment control by photoelectric inductor; |
| | 6. | Emergency stop equipment; |
| | 7. | Bar against foreign objects; |
| | 8. | Protection mechanism of loading table elevation; |
| | | |
| (2). | .2- Roller And 2-Cylinder System UV Coating Unit |
| | Standard Features: |
| | 1. | Offset upper-sway pass-sheet device; |
| | 2. | Suitable for thin/thick paper pressing roller gripper; |
| | 3. | Quick plastic plate clipping, easy assembling, and easy adjustment; |
| | 4. | two-roller oil supplying device with fixed oil amount and even oil layer; The two roller at the head of the |
| | . | main coater for easy changing photopolymer. |
| | 5. | Automatic circulation temperature control ele-thermal coating tank with capacity: 40 KG; Supported by |
| | | rolling bearing and small resistance and easy maintenance. |
| | 6. | Integrated lubrication for convenient daily maintenance; |
| | 7. | Low speed inching motor; |
| | 8. | Round hand wheel knob with safety device; |
| | | |
| (3). | UV Curing Equipment And Conveyor |
| | 3- U.V Lamps Curing Equipment; |
| | Safety Devices: |
| | 1. | Full/half lamp device, automatic change to half lamp at mis-sheet; |
| | 2. | Temperature control device with safety protection; |
| | 3. | U.V leak-proof protection hood; |
| | 4. | Automatic lamp-off device when conveying net stops; |
| | Teflon net with conveyor; |
| | Full distance bottom sucker; |
| | Net belt automatic correction device; |
| | Conveying net operates at the same time with main machine electric appliances with speed co-adjustment and single |
| | Micro-adjustment; |
| | | |
| | | |
| |
| High-speed U.V Spot and Overall Coating Machine For Solvent Base |
| Model: SD-1040 |
| (4). | Automatic Delivery Unit |
| | Standard Features: |
| | 1. | Max loading height: 1100mm; |
| | 2. | Sheet counter; |
| | 3. | Thin paper guiding device; |
| | 4. | Safety device for delivery table elevation; |
| | 5. | Sucking conveyor; |
| | |
| (5). | Speed Adjustment By Inverter, Terminal Connection, PLC Control |
| | |
| | Optional Equipment: |
| (6). | Coating Part For Water Base And I.R Drying Unit. |
| | Standard Features: |
| | 1. | Independent varnishing supply device and convenient for changing varnishing type. |
| | | |
| | 2. | High quality and high efficiency drying system. The reflective hood of I.R. Quartz-tube can accumulate heat |
| | | on the sheet surface. |
| Standard Equipments: | Option. |
| 1. Auto Stream Feeder. | (a) on the ceramic anilox roll |
| 2.2-Roller And 2-Cylinder System UV Coater. | Feeding Non Stop mechanism |
| 3. UV 3-Lamps Curing Equipment. | Non Stop Delivery |
| 4.Automatic Delivery Unit. | Air conditioning cooling |
| 5.Water-based coating equipment. | Pre-Loading Doll |
Floor Plan.
Parts Introduction.
Main Specifications.
| High-speed U.V Spot and Overall Coating Machine For Solvent Base |
| |
| Standard Equipment Consists Of: |
| (1). | Automatic Stream Feeder. |
| | Standard Features: |
| | 1. | Max loading height: 1100mm |
| | 2. | Lower-sway front guide; |
| | 3. | Continuous rotation press-wheel side guide; |
| | 4. | Mechanical and electrical double sheet detector; |
| | 5. | Mis-sheet, sheet-misalignment control by photoelectric inductor; |
| | 6. | Emergency stop equipment; |
| | 7. | Bar against foreign objects; |
| | 8. | Protection mechanism of loading table elevation; |
| | | |
| (2). | .2- Roller And 2-Cylinder System UV Coating Unit |
| | Standard Features: |
| | 1. | Offset upper-sway pass-sheet device; |
| | 2. | Suitable for thin/thick paper pressing roller gripper; |
| | 3. | Quick plastic plate clipping, easy assembling, and easy adjustment; |
| | 4. | two-roller oil supplying device with fixed oil amount and even oil layer; The two rollers at the head of the |
| | . | main coater for easy changing photopolymer. |
| | 5. | Automatic circulation temperature control ele-thermal coating tank with capacity: 40 KG; Supported by |
| | | rolling bearing and small resistance and easy maintenance. |
| | 6. | Integrated lubrication for convenient daily maintenance; |
| | 7. | Low speed inching motor; |
| | 8. | Round hand wheel knob with safety device; |
| | | |
| (3). | UV Curing Equipment And Conveyor |
| | 3- U.V Lamps Curing Equipment; |
| | Safety Devices: |
| | 1. | Full/half lamp device, automatic change to half lamp at mis-sheet; |
| | 2. | Temperature control device with safety protection; |
| | 3. | U.V leak-proof protection hood; |
| | 4. | Automatic lamp-off device when conveying net stops; |
| | Teflon net with conveyor; |
| | Full distance bottom sucker; |
| | Net belt automatic correction device; |
| | Conveying net operates at the same time with main machine electric appliances with speed co-adjustment and single |
| | Micro-adjustment; |
| | | |
| | | |
| |
| High-speed U.V Spot and Overall Coating Machine For Solvent Base |
| |
| (4). | Automatic Delivery Unit |
| | Standard Features: |
| | 1. | Max loading height: 1100mm; |
| | 2. | Sheet counter; |
| | 3. | Thin paper guiding device; |
| | 4. | Safety device for delivery table elevation; |
| | 5. | Sucking conveyor; |
| | |
| (5). | Speed Adjustment By Inverter, Terminal Connection, PLC Control |
| | |
| | Optional Equipment: |
| (6). | Coating Part For Water Base And I.R Drying Unit. |
| | Standard Features: |
| | 1. | Independent varnishing supply device and convenient for changing varnishing type. |
| | | |
| | 2. | High quality and high efficiency drying system. The reflective hood of I.R. Quartz-tube can accumulate heat |
| | | on the sheet surface. |
| Standard Equipments: | Option. |
| 1. Auto Stream Feeder. | (a) on the ceramic anilox roll: |
| 2.2-Roller And 2-Cylinder System UV Coater. | Feeding Non Stop mechanism : |
| 3. UV 3-Lamps Curing Equipment. | Non Stop Delivery : |
| 4.Automatic Delivery Unit. | Air conditioning cooling: |
| 5.Water-based coating equipment. | Pre-Loading Dolly : |
