Open Head Automatic Wire Feeding Tube to Tube Stainless Steel Pipe Orbital TIG MIG Welding Machine Welder

Product Description

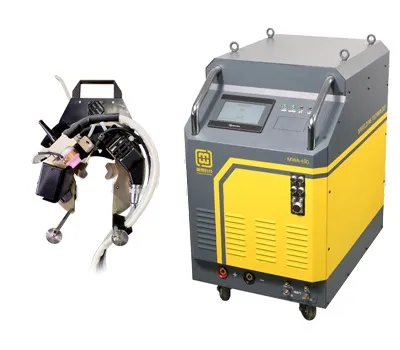

Product DescriptionOpen Orbital Weld HeadsOur range of open welding heads allows you to make very high-quality welds in minimal space. On these heads, you will find a mechanical tracking system to keep a constant arc height. The torch can tilt to weld at an angle. This type of machine can be used to weld carbon steel tubes. Open heads offer very wide welding possibilities thanks to the inclination of the torch and the addition of filler metal. The clamping range is achieved without the addition of jaws. The tracking system is by roller so as not to scratch the tube. All the parts in contact with the tube are made of stainless steel so as not to contaminate it.Product Advantages1. The equipment adopts a standard modular design, the replacement of spare parts is convenient, and the cost is low;
2. With the speed measurement function with feedback, the rotation is more accurate and stable, and the angle of the welding seam is monitored in real-time. The rotation speed of the welding torch is accurate and stable, and the perfect welding quality is achieved;
3. With automatic arc length and yaw function, it can meet the welding of pipe fittings of different sizes;
4. The welding torch is cooled by circulating water, with a high-duty cycle, and it can work stably and reliably for a long time.
5. Under the same conditions, different pipe diameters can be welded without readjusting the welding parameters;
6. The welding torch adopts the Haval fixture, which can be adjusted according to the diameter of the pipe fittings so that the welding torch can firmly lock the pipe fittings.
Power Control Unit
Our power supplies have been designed to be user-friendly and intuitive. Our step-by-step design allows, even beginners, to easily generate programs after only a short learning period, while very advanced functions are available to advanced users looking to customize their programs. Particular attention has been paid to using as many as possible standard industrial components for their reliability and availability. The facilitated access to parts makes our power sources robust and easy to maintain. The combination of an easy-to-use and sturdy package allows you to be competitive and makes this range the best choice for all your current or future projects.Product Advantages1. MWA-400 programmable welding power source consists of the control system, inverter core, cooling water tank, etc.
2. The equipment adopts a German Siemens PLC control system, EWM welding movement, Swiss Maxon motor, Omron relay, and other
imported configurations. Precise control of various input and output signals.
3. Using touch man-machine interface, fast switching between Chinese and English interfaces, color 10-inch touch screen, graphic
and step interface design, easy to operate and easy to learn and meet the requirements of different venues.
4. With functions such as parameter saving/printing, it can be operated with basic welding skills.
5. Real-time monitoring of welding parameters such as current, voltage, and speed during the welding process to ensure the safety
and efficiency of the welding process.Detailed Photos
Product Parameters

Model	MWG-90	MWG-170	MWG-230	MWG-325
Welding range	20mm-89mm	63mm-168mm	130mm-230mm	159mm-325mm
Wall thickness	1-10mm	2-10mm	2-10mm	2-10mm
Protective gas	Argon	Argon	Argon	Argon
Cooling method	Water-cooling	Water-cooling	Water-cooling	Water-cooling
Tungsten diameter	2.4mm	2.4mm	2.4mm	2.4mm

Packaging & ShippingThe open orbital welding head and wire feeder are packed in an alloy box and then pack with the power control unit together in the wooden box.
Company ProfileHenan E-work Industrial Equipment Co., Ltd. is a professional company dedicated to the R&D, production, and sales of piping working machines and tools. In line with the business tenet of "piping solutions expert" and the mission of "making work easy and efficient", we have independently developed and produced a series of products that customers love. Our product series mainly include pipe-cutting machines, pipe-welding machines, pipe-beveling machines, pipe-bending machines, pipe threading machines, HDPE pipe machines, and related tools. These products are widely used for stainless pipe, steel pipe, galvanized pipe, mild steel, and plastic pipes.
Our company not only has a professional and skilled workforce but also has established a complete and complete quality management system. We are committed to providing customers with world-class products and look forward to sincere and friendly cooperation with our customers to have a good business together.

---
