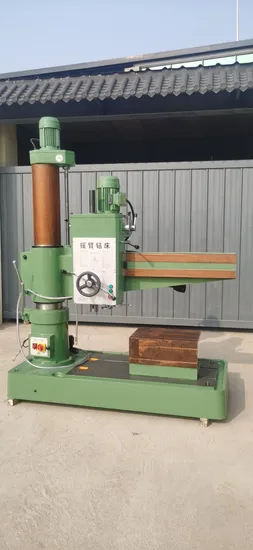

Sime Automatic Vertical Manual Radial Drilling Machine Z3032 Hydraulic Machine

Product Description

The main parameters	Z3032× 10	Z3032×10 (Automatic tool movement)
Maximum drilling diameter (mm)	32	32
Spindle taper	Mohs No. 4	Mohs No. 4
Spindle speed stages	6	6
Spindle speed range	108-1000	108-1000
Spindle lifting speed (r/min)	1.21	1.21
Rocker arm rotation angle	360°	360°
Maximum allowable torque of the spindle (Nm)	200	200
Spindle feed (3 levels)		0.10 0.16 0.25
Maximum feed allowed for the spindle (N)	5300	5300
Main motor power (kw)	1.5/2.2	1.5/2.2
Rocker arm lifting motor (kw)	0.55	0.55
Machine weight (kg)	950	1000
Note: Cooling water pump is only available for Z3032 × 10 model (motor power: 0.24kw)

The main parameters	unit	Z3040 × 10 Single Column	Z3040 × 10 double column
Maximum drilling diameter	mm	35/40 (steel/casting)	35/40 (steel/casting)
Distance from spindle centerline to column generatrix (minimum-maximum)	Mm	300-880	310-900
Distance from spindle end to base table (minimum - maximum)	Mm	230-1120	170-1080
Spindle travel	mm	200	280
Spindle taper		MT.4	MT.4
Spindle speed stages	Level	12	12
Spindle speed range	r/min	34-1220	34-1220
Spindle lifting speed	r/min	1.3	1.3
Rocker arm rotation angle	°	360±180°	360±180°
Horizontal moving distance of spindle box	Mm	580	600
Spindle feed	3 Level	0.10 0.16 0.25	0.10 0.16 0.25
Maximum allowable resistance of the spindle	N	6300	6300
main motor power	kw	1.5/2.2	1.5/2.2
Lifting motor power	kw	1.1	1.1
Machine weight	Kg	800	1150
Overall dimensions (length*width*height)	Mm	1450*690*2200	1500*700*2200

The main parameters	unit	Z3040×13 Radial Drilling Machine
Maximum drilling diameter	mm	35/40(/) 35/40 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum)	Mm	320-1170
Distance from spindle end to base table (minimum-maximum)	Mm	300-1100
Spindle travel	mm	200
Spindle taper		MT.4
Spindle speed stages	Level	12
Spindle speed range	r/min	34-1220
Spindle lifting speed	r/min	1.3
Rocker arm rotation angle	°	360±180°
Horizontal moving distance of spindle box	Mm	850
Spindle feed	Level 3	0.10 0.16 0.25
Maximum allowable resistance of the spindle	N	6300
main motor power	kw	1.5/2.2
Lifting motor power	kw	1.1
Machine weight	Kg	1500
Overall dimensions (length*width*height)	Mm	1850*800*2350

The main parameters	unit	Z3045× 13 Radial Drilling Machine
Maximum drilling diameter	mm	40/45 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum)	Mm	320-1120
Distance from spindle end to base table (minimum-maximum)	Mm	235-1100
Spindle travel	mm	280
Spindle taper		MT.4
Spindle speed stages	Level	12
Spindle speed range	r/min	22-1400
Spindle lifting speed	r/min	1.3
Rocker arm rotation angle	°	360±180°
Horizontal moving distance of spindle box	Mm	850
Spindle feed	Level 3	0.10 0.16 0.25
Maximum allowable resistance of the spindle	N	6300
main motor power	kw	3
Lifting motor power	kw	1.1
Machine weight	Kg	1600
Overall dimensions (length*width*height)	Mm	1850*800*2350

The main parameters	unit	Z3050×16 Radial Drilling Machine
Maximum drilling diameter	mm	48/50 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum)	Mm	360-1600
Distance from spindle end to base table (minimum-maximum)	Mm	300-1150
Spindle travel	mm	220
Spindle taper		MT.5
Spindle speed stages	Level	6
Spindle speed range	r/min	78.135.240.350.590.1100
Spindle lifting speed	r/min	1.3
Rocker arm rotation angle	°	360
Horizontal moving distance of spindle box	Mm	1250
Spindle feed	Level 6	0.10/0.16/0.22/0.25/0.35/0.56
Maximum allowable resistance of the spindle	N	16000
main motor power	kw	4
Lifting motor power	kw	1.5
Machine weight	Kg	2000
Overall dimensions (length*width*height)	Mm	2170*950*2450

The main parameters	unit	Z3063× 16/20 Radial Drilling Machine
Maximum drilling diameter	mm	50/63 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum)	Mm	360-1600/1900
Distance from spindle end to base table (minimum-maximum)	Mm	300-1050/1150
Spindle travel	mm	315
Spindle taper		MT.5
Spindle speed stages	Level	12
Spindle speed range	r/min	34.47.66.90.130.180.240.340.470.650.930.1280
Spindle lifting speed	r/min	1.3
Rocker arm rotation angle	°	360
Horizontal moving distance of spindle box	Mm	1250/1650
Spindle feed	Level 6	0.10/0.16/0.22/0.25/0.35/0.56
Maximum allowable resistance of the spindle	N	16000
main motor power	kw	4/5.5
Lifting motor power	kw	1.5
Machine weight	Kg	2200/2600
Overall dimensions (length*width*height)	Mm	2170*950*2450 2570*1000*2550

The main parameters	unit	Z3080× 25 Radial Drilling Machine
Maximum drilling diameter	mm	80
Distance from spindle centerline to column generatrix (minimum - maximum)	Mm	500-2500
Distance from spindle end to base table (minimum-maximum)	Mm	550-2000
Spindle travel	mm	450
Spindle taper		MT.6
Spindle speed stages	Level	16
Spindle speed range	r/min	16-1250
Spindle lifting speed	m/s	0.017
Rocker arm rotation angle	°	±180
Horizontal moving distance of spindle box	Mm	2000
Spindle feed	Level 16	0.04-3.2
Maximum allowable resistance of the spindle	N	35000
main motor power	kw	7.5
Lifting motor power	kw	3
Machine weight	Kg	11000
Overall dimensions (length*width*height)	Mm	3730*1400*3790

Product Parameters

The Z3050 radial drilling machine has a drilling diameter of 50mm, which is mainly composed of a base, an inner column, an outer column, a rocker arm, a headstock, and a workbench. The inner column is fixed at one end of the base, and an outer column is sleeved on the outside of it, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is sleeved on the outer column to move up and down. Because the screw rod and the outer column are connected as a whole, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, but can only rotate around the inner column together with the outer column. Detailed Photos
