6 Core Fibre Optic Cable Steel Armoured GYXTW Factory Outdoor Sm Fiber Optic Cable G652D Fiber 2 4 6 12 24 Core GYXTW

US$50.00-100.00 10 kilometers (MOQ)

Basic Info.

Model NO.
GYXTW
Connection Structure
SC
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Multicore
Certification
CE/RoHS/ISO9001
Brand
Feiboer
Sheath Material
HDPE
Fiber Count
2~24 Cores
Product Name
Fiber Optic Cable G652D Fiber
Jacket Material
MDPE
Central Strength Components
Steel Wire
Color
Black
Brand Name
Feiboer or OEM
Package
Plywood Reel/Customized
Fiber Type
G652D
Number of Conductors
8
Transport Package
Wooden Drum
Specification
3-5KM
Trademark
FEIBOER or OEM
Origin
Guangdong, China
HS Code
8544700000
Production Capacity
500000km/Year

Product Description

6 Core Fibre Optic Cable steel Armoured GYXTW Factory Outdoor SM Fiber Optic Cable G652D fiber 2 4 6 12 24 Core gyxtw


Description

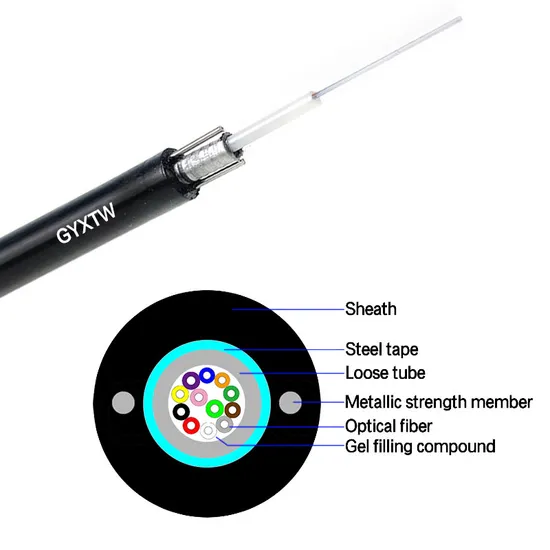

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath

Product Co nstruction
• Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Applications
• Outdoor Duct, overhead
Optical Characteristics
Fiber Type G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20°C)
850 nm ≤3.0 dB/km ≤3.3 dB/km
1300 nm ≤1.0 dB/km ≤1.0 dB/km
1310 nm ≤0.36 dBrkm ≤0.40 dBkm
1550 nm ≤0.22 dB/km ≤0.23 dBkm
Bandwidth 850 nm ≥500 MHz-km ≥200 Mhz·km
1300 nm ≥500 MHz-km ≥500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260 nm ≤1450 nm
Technical Specification
Fiber
count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max No.of
(Tubes+fillers)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 9.7 76 6 5 1500 600 1000 300
32~48 10.7 90 8 6 1500 600 1000 300
50~72 11.6 110 12 6 2000 600 1000 300
74~96 13 135 12 8 2000 600 1000 300
98~144 15.1 190 12 12 2000 600 1000 300
