High Precision CNC ID Internal/Cylindrical/External/ Compound Grinding Machine

Product Description

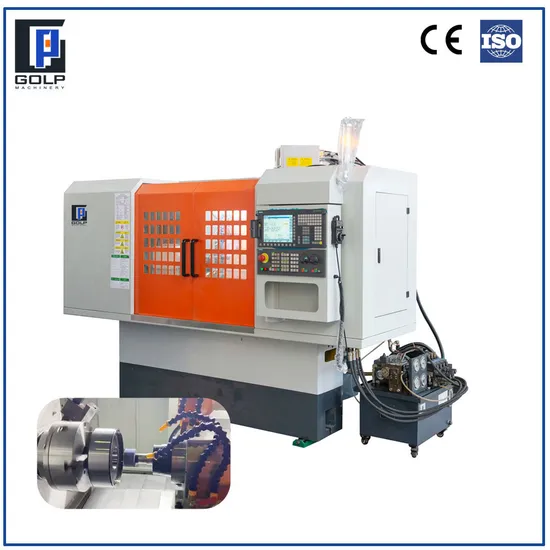

Δ This machine is a two axis (X-axis, Z-axis) CNC Internal Grinder, which is mainly used to grind the inner hole, step hole, iner end face and outer end face of the work piece. The grinding cycle is completed automatically
(with automatic feed,withdrawal , rough grinding and finegrinding); Automatic dressing of grinding wheel,automatic compensation, etc.).
Δ The machine tool is fixed by the work piece box, the worktable moves left and right.and the grinding wheel frame do the back and forth fedingmovement. The movement of the worktable and grinding wheel frame is driven by the servo motor through the ball crew, both of which adoptlinear guide rails.
Δ The rotation speed of work piece spindle and grinding wheel spindle are controlled by frequency converer to reaize stepless speed regulaton.
Δ The machine tool adopts a front movable operation box and an independent electrical cabinet. The protective cover shell has two differentstyles of semi closed or fully closed for users optional.

Model of machine tools		GK250
The range of grinding diameter of hole(mm)		100-500
Maximum grinding depth (mm)		500
Swing diameter of work piece (mm)	Inside the shell(mm)	510
	Outside the shell (mm)	720
The maximum stroke of feeding slide(mm)		200
The maximum stroke of workbench(mm)		730
Maximum rotation angle of lather head(° )		30°
Rotating speed of work piece (r/min)		30-500stepless speed regulation
Rotating speed of grinding wheel (r/min)		2000-10000(stepless speed regulation)
Motor power of workpiece(kw)		4
Motor power of grinding wheel(kw)		5.5
Motor power of X-axis servo motor(kw)		2
Motor power of Z-axis servo motor(kw)		4
The power of oil pressure motor (kw)		0.55
Cooling motor power (kw)		0.09×2
Rated power(kw)		17.8
Maximum speed of workbench m/min		6
Grinding speed m/min		0-4
Feed speed of grinding wheel m/min		5
X-axis minimum resolution mm		0.001
Z-axis minimum resolution (mm)		0.001
Maximum load capacity of workpiece (kg)		300
Flow of cooling pump(L/min)		30
The pressure of hydraulic system (MPa)		0.4
Flow of oil pump(L/min)		25
The weight of machine tools(kg)		5600
Machine overall dimension(mm)		4000× 1900×2000
Roundness of internal hole(um)		3
Machining precision	Cylindricity of internal hole(um)	5
	Surface roughness of internal hole (um)	Ra0.63
	Roughness of end face(um)	Ra0.8

Δ Grinding Machines Product Collection

You can click on the image above for details.

WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.


Q: What is the warranty period?
A: We offer a warranty service for all purchased products ranging from 12 to 24 months, ensuring you are worry-free during the use of our equipment. Choosing us means choosing a long-term and reliable partner.
Q: What is the delivery time?
A: For in-stock items, we guarantee delivery within 1-2 months; for custom-manufactured products, we commit to delivering within 5-6 months. No matter how urgent your needs are, we can respond quickly to ensure your project proceeds on schedule.
Q: Do you provide after-sales service?
A: Yes, we provide comprehensive after-sales services, including but not limited to timely supply of spare parts, online technical support, on-site installation and commissioning, as well as operational training. We strive to offer you the most thoughtful service support to ensure the efficient operation of equipment and assist in the continuous growth of your business.
Q: What additional products or services do you offer?
A: we also provide "turnkey" engineering services, customizing automated production lines according to customer needs to ensure seamless integration with existing production processes. We are committed to offering complete solutions to every customer, helping you achieve maximum production efficiency.

---
