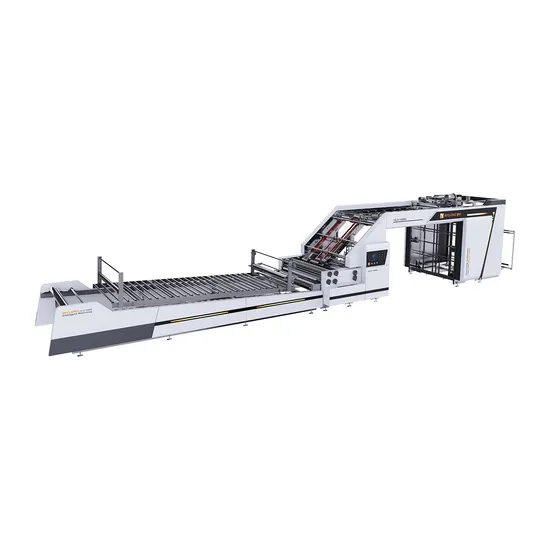

Automatic Water Base Gluing Laminating Machine with Hot Knife and Dust Remover

Product Description

Product Parameters

Model	HLG-1480G	HLG-1680G
Max.sheet(wxl)	1480X1480mm	1650x1650mm
Min.Sheet(wxl)	450x350mm	450x350mm
Thickness of upper paper	150-600g/m2	150-600g/m2
Thickness of bottom paper	≤10mmA-FCorrugated paper,(More than 300 grams of cardboard)	≤10mmA-FCorrugated paper,(More than 300 grams of cardboard)
Machine speed	12000P/H	12000P/H
Accuracy	±1mm	±1mm
Machine space	157000x2200x2600mm	161000x2400x2600mm
Weights	7000kg	7800kg
Power	22kw/380v	26kw/380v

PRODUCT FEATUTES
The fastest speed is 12000 sheets/hour
Fully realize intelligent automation
Automatic adjustment of paper specifications
Automatic tracking system for bottom paper and top paper
The left and right positioning of the bottom paper is rectified in the whole process
The whole process of the left and right positioning of the face paper is corrected
Intelligent detection of paper length
Intelligent fault display alarm system
Intelligent glue supply and recovery system
Intelligent cleaning water circulation system
Backing paper bending and pressing device
Bottom paper suction size adjustment device
Bottom paper belt automatic cleaning device
The most advanced electrical control system
-shaped pre-stack paper lifting device
Anti-glue protection device
Facial paper with ball inclined pull Product Description Feida System: Equipped with a high-speed automatic dedicated Feida head, the paper lifting nozzle can freely adjust the paper lifting angle, and the paper feeding nozzle can adjust the paper feeding angle regardless of thick or thin paper, ensuring high-speed and stable paper feeding.
Bottom paper system: Adopting imported servo motor control system, equipped with Nida suction belt from Japan, variable frequency adjustment of suction force, belt water roller cleaning, patented technology to ensure smooth paper output of corrugated paper and cardboard, and simple operation.
Positioning system: Utilizing multiple sets of photoelectric sensors to sense the relative position of the backing paper in advance, controlling the servo motors on both sides of the backing paper to perform independent compensation actions, ensuring precise adhesion between the backing paper and the backing paper.
Transmission system: It adopts imported double tooth Timing belt transmission and is equipped with tensioning device to ensure accurate, stable and low noise transmission.
Electrical system: designed according to European CE standards, ensuring the stability, high efficiency, and low failure of the entire machine. By combining the human-machine interface with the PLC, various information such as warnings, detected faults, abnormal states, and operating speeds are displayed on the screen at a glance.
Gluing system: Adopting stainless steel water roller, it will never rust. After fine grinding, the glue amount is adjusted to the minimum to ensure even glue. The lower roller is cleaned with a water roller.

FAQ 1.Who Are We? We are based in Zhejiang, China, start from 2004,sell to South America(30.00%),Africa(30.00%),Southeast Asia(20.00%),South Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2.How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What Can You Buy From Us? Automatic Cardboard Laminating Machine,Automatic Flute Laminating Machine,Automatic Paper box patching Gluing Machine, Automatic folder Gluer,Automatic Die Cutting Machine
4.Why Should You Buy From Us Not From Other Suppliers? Wylong Machinery Co., Ltd. is a professional corporation specialize in manufacture full complete production line of Automatic Cardboard Laminating Machine,Automatic Flute Laminating Machine and other industrial machinery with more than 20 years experience.
5.What Services Can We Provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English
