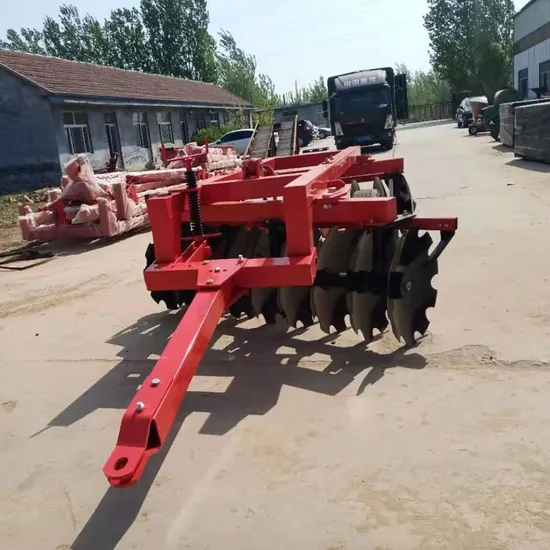

1bz3.0width 3m Hydraulic Heavy Duty Disc Harrow for 100HP Tractor Trailed Agricultural Machinery

Product Description

Product Description
1BZ series hydraulic heavy disc harrow product description1BZ series hydraulic heavy disc harrow has the high working efficiency, strong capability into the soil and after plough loosen soil.can highly adapt to the sticky heavy soil,uncultivated field and those plots of many weeds,breaking hardened and impervious soil surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture it can be used on cultivated land for tillage harrowing instead of plough. great ability to penetrate and shatter the soil, level soil surface and loosen soil after harrowing, being well suitable for heavy clay soil wasteland and weedy field as well.
This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.1BZ series hydraulic heavy disc harrow product selling points1. They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields.
2. Strong ability of soil pulverization.It could be used for cleaning away stubble of plants before tillage, or crushing clods after tillage.
3. Fit the scraper for each disc blade to clean the objects.
4. Hydraulic heavy duty disc harrow is trailed for 80-400hp tractor.
5.High quality of difunctional oil cylinder.Own hydraulic system to lift and down the transport wheel freely.
6. Widely working width of this heavy disc harrow to be 2-6m.
7. The working depth can be adjusted freely.Maximum harrowing depth on uncultivated land can reach 180-350mm.
8. Compact and strong structure make the machine have long service life.
9. The materail of plough disc is 65Mn spring steel,it is more strong.
10. Strong and durable bearing.
Product Parameters
Product parameters

Model	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0
Width of cut (mm)	2200	2500	3000	3400	4000
Depth of cut (mm)	200
Number of rake blades	20	24	28	32	36
Dia of disc(mm)	660*5
Weight (kg)	1250	1350	1430	1550	1900
Tractor power (hp)	80	90	100	120	150
