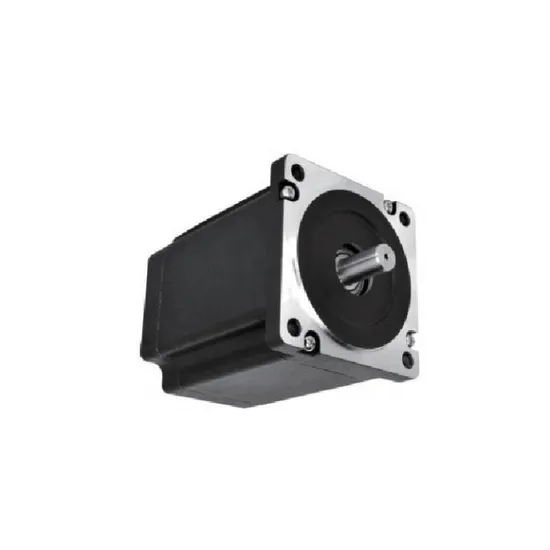

NEMA 34 Dia 86mm 60-155mm Long 2 Phase 1.8 Degree 8.7n. M Hybrid Stepper Motor for Parking Lock

Product Description

Product Description General Specification: The hybrid stepper motor combines the advantages of permanent magnet and reactive type, and is an electromechanical component stepper motor that can convert electric pulse signals into angular or linear displacement. It is divided into two-phase, three-phase, and five phases: the two-phase stepper angle is generally 1.8 °. As the number of phases increases, the stepper angle decreases and the accuracy improves. This type of stepper motor is the most widely used in AGV, home appliance, barrier, auto door,LIDAR,robotics,logistics,green energy, medical, textile, office automation, financial equipment and agriculture etc. Length, shaft, phase, step angle,current, torque and so on can be customized. Details Images Specification

MODEL	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Hold Torque (N.cm)	Leads (pcs)	Rotor initia (g.c)	Weight (kg)
86HS065DE034X	65	1.8°	0.34	5	1.7	290	8	1400	1.7
86HS066DE048X	66	1.8°	0.48	4.5	2.16	220	8	1500	1.9
86HS078DF042X	78	1.8°	0.42	5.5	2.31	500	4	1850	2.05
86HS080DE075X	80	1.8°	0.75	4	3	460	8	1900	2.1
86HS090DF075X	90	1.8°	0.75	4	3	600	4	2300	2.4
86HS096DF130X	96	1.8°	1.3	2.4	3.12	450	4	2700	2.8
86HS114DE100X	114	1.8°	1	4	4	420	8	3200	3.15
86HS118DE035X	118	1.8°	0.35	7.1	2.485	607	8	3500	3.3
86HS120DE100X	120	1.8°	1	4.5	4.5	800	8	3800	3.5
86HS150DE085X	150	1.8°	0.85	7	5.95	1200	8	4500	4.2

Can be customized please contact us with your customized specifications for us to recommend you best resolution with
