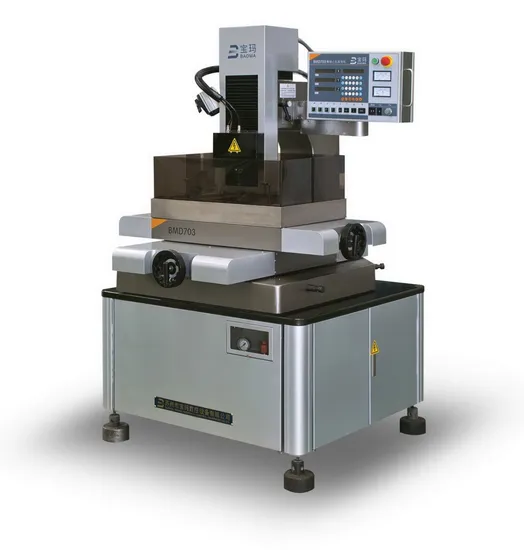

Small Hole EDM Machine

US$6,500.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BMD703-500
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
4
Hole Diameter
0.2-3.0
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
1unit/Plywood Case
Specification
CE; ISO9001: 2000; ISO14001: 2004
Trademark
BAOMA
Origin
China
HS Code
84563010
Production Capacity
1200units/Year

Product Description

CNC Small Hole Drilling Machine
Able to drill holes range from diameter 0.2-3.0mm with max depth-diameter ration 300: 1
Drilling speed 30-60 mm/min
Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc
Able to drill directly into bevel or curve surface
With electrode auto checking function, improve machining hole precision
With lubrication system, and hand control equipment
With memory function
NC axis with opposite clearance error compensation function
With hand zero clearing function for NC axis
X, Y, Z axis adopt ball screw, linear guideway
X, Y, Z axis adopt servo motor, control precision as 0.001mm
Hole position and parameters editor function
Optional C axis (rotate axis), four axis CNC Specification BMD703-500 Universal Parameter
Work table Size 410 x 590 mm Drilling Depth 0 - 300 mm
Work Table Travel 400 x 500 mm Z axis Travel 300+(320) mm
Load of Table 300 Kg Max. Drilling Speed 60 mm/min
Electrode Diameter 0.2-3.0 mm Max. Working Current 30 A
Water Tank Capacity 30 L Max. Power comsumption 3.5 KVA
Machine Weight 700 Kg Voltage 220-415V / 50HZ
Machine Dimensions 1379 x 1429 x 1886 mm Working Solution Water/Saponification
Packing Dimensions 1680 x 1730 x 2050 mm Function of setting depth Yes
Control Type ZNC: Z axis NC Control Z axis Travel Control Electric Motor
