Engine Lathe Heavy Duty Lathe Conventional Lathe

Product Description

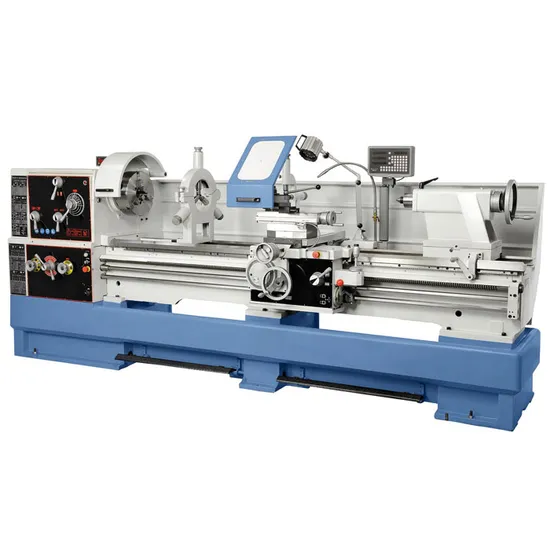

Engine Lathe C6280 Heavy Duty Lathe And Conventional Lathe
Features2 Axis digital readout systemTaper turning attachment fitted to saddleTriple bearings supporting headstock spindleQuick change toolpost with additional holdersAdjustable taper roller bearings providing spindle accuracyPrecision 'V'-beds & headstock gears are all hardened & groundMultiple discs forward and reversing clutch systemOverload protection on drive motor and coolant systemUniversal enclosed gearbox incorporating metric & imperial thread capabilitiesFoot operated spindle brake with safety cut out switchX & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min400mm wide induction hardened heavy duty cast iron bedRemovable gap bed allowing work piece to swing up to 900mmCross slide handle disengages when auto feed is usedSaddle hand wheel disengages when auto feed is usedAdjustable clutch for auto feeds protects machine from overloading during machiningChuck guard fitted with safety micro switchMicro switch on side access doorPowered longitudinal and cross feedsMetric / imperial calibrated feed dialsCoolant system with flexible hose enabling flow control & directionOil sight glass for head stock and gearbox & apronLubrication pump on saddle oiling slidesLow voltage halogen work light

MACHINE TOOL TYPE	GH-6266A	GH-6280Q
CAPACITY
Swing Over bed	Φ660mm	800mm
Swing Over Cross Slide	Φ440mm	Φ570mm
Swing in Gap Diameter	Φ900mm	Φ1035mm
Length of Gap	250mm
Center Height	330mm
Distance Between Centers	1500mm/2000mm/3000mm
Width of Bed	400mm	400mm
Max. Section of Tool	25mm × 25mm
Max. Travel of Cross Slide	368mm	420mm
Max. Travel of Compound Rest	230mm	230mm
HEADSTOCK
Spindle Bore	Φ105mm
Spindle Nose	D1-8
Taper of Spindle Bore	Φ113mm(1:20)/MT5
Spindle Speed Number	16
Range of Spindle Speed	25~1600rpm	25~1600rpm
FEEDS AND THREADS
Leadscrew Pitch	Φ40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range	7/16~80T.P.I. (54 kinds)
Metric Threads Range	0.45~120mm (54 kinds)
Diametrical Pitches Range	7/8~160DP (42 kinds)
Module Pitches Range	0.25~60MP (46 kinds)
Longitudinal Feeds Range in Metric Lead Screw	0.044~1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch Lead Screw	0.00165"~0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw	0.022~0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw	0.00083"~0.02774"/rev (25 kinds)
TAILSTOCK
Quill travel	235mm
Quill diameter	Φ90mm
Quill taper	MT5
MOTOR
Main motor power	7.5kW(10HP)
Coolant pump power	0.09kW (1/8HP)
DIMENSION AND WEIGHT
Overall Dimension (L×W×H)	321/371/471cm×123cm×160cm	321/371/471cm×123cm×167cm
Packing Size (L×W×H)	324/374/474cm×114cm×184cm	324/374/474cm×114cm×191cm
Net Weight	3060/3345/3710kg	3220/3505/3870kg
Gross Weight	3535/3835/4310kg	3705/4005/4480kg

Standard accessories:
Rapid feed longitudinal and cross3-jaw chuck steel PO3-315 mm /
D8Independent chuck K72-400 mm /
D8Face plate 500 mm
Steady rest - Passage up to max. 180 mm
Follow rest - Passage up to max. 100 mm2
dead centers
Foot pedal with brake function according to CEInitial filling with Shell Tellus 46Safety clutch
Coolant devicemachine
light
Change gears
Morse taper
drill sleeve
Splash guard
Cable guide by energy chainTools

---
