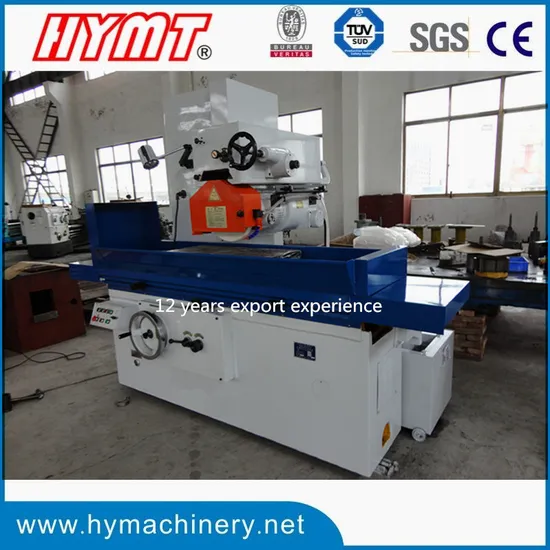

M7132X1000 high precision hydraulic surface grinding machine

Product Description

MY4080 hydraulic surface grinding machine Main features: 1). Compact structure and easy operate. 2). Longitudinal movement driven by hydraulic and cross movement driven by electric motor 3). Table trantsverse feed by automation operate or by handle. 4). Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
M7132 hydraulic surface grinding machine main specifications

Model M7132*1000 M7132*1600 M7132*2000 Working table Table size(L×W) mm 1000×320 1600×320 2000×320 Max movement of working table(L× W) mm 1100 1700 2100 T-Slot(number×width) 3×18 3×18 3×18 Speed of working table m/min 3--25 3--25 3--25 Grinding head Max distance from spindle center to table surface mm 570 570 570 Max travel of grinding head Cross(Manual and hydraulic) mm 350 350 350 Vertical(Manual) mm 400 400 400 Spindle speed rpm 1440 1440 1440 Wheel Size(Outer diameter×width×Inner diameter) mm φ350×40×φ127 φ350×40×φ127 φ350×40×φ127 Scale on the vertical handwheel mm 0.01 0.01 0.01 Grinding head feed per revolution of handwheel mm 1.00 1.00 1.00 Total power kw 11 12 12 Spindle motor Power kw 7.5 7.5 7.5 Speed r/min 1440 1440 1440 Rapid up and down motor Power kw 0.37 0.37 0.37 Speed r/min 1440 1440 1440 Oil pump motor Power kw 3 4 4 Speed r/min 960 960 960 Coolant pump motor Power kw 0.125 0.125 0.125 Speed r/min 2800 2800 2800 Oil pump Flow L/min 100 125 125 Working pressure MPa 1.5 1.5 1.5 Working precision The parallelism of working surface to base level mm 1000:0.015 1000:0.015 1000:0.015 Surface roughness µm Ra0.63 Ra0.63 Ra0.63 Weight N/G kg 3500/4000 4300/4900 4830/5300 Overall dimension(L×W×H) mm 2630×1700×2100 4150×1700×2300 5000×2000×2350

Standard accesspries:
Our Services
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

---
