Plastic Pet Bottle Blow Water Bottle Mold Mould Injection Blowing Machine

Product Description

SZ-55II full automatic blow molding machine produces bottles max.1L. It is suitable for PP, PE, HDPE, PET, ABS, PVC, and so on. The precision design of the heater ensures even heating for getting perfect plastic products. The double station design is suitable for mass production to meet your production request in big quantity.
Technical Parameters: ( SZ-55II ) (Double station and double die heads)

	Suitable material	LDPE, PE.HDPE, so on
		1L
	Output capacity	350-500 pcs/h
	Size	4.2X2.2×2.6(M)
	Weight	5TSuitable materialMax volume
System	Specification	Parameters	Note
Plasticizing system	Summarize	High efficient low power consumption plasticization system, transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing, High intension, Low noise reducer
	Screw	∮55 mm,L/D ratio 24, 38CrMoALA	Cooling system available
	Plasticization	75 Kg/H	HDPE
	Heating Zone	3 Aluminum Heater	Automatic heating
	Heating power	5 KW/H
	Extrusion Motor	Three-phase asynchronous motor
	Cooling Fan	3 zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮170mm
	Heating zone	3 Stainless steel heating cycle
	Heating power	5~7KW
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mold opening, and clamping system
	Clamping force	65KN
	Template distance	420X350mm
	Max mold size	400X350mm
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available)	TAIWAN WISETECH system
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	The automatic temperature control module
	Movement control	TAIWAN WSIETECH, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Servo system	Three-phase asynchronous servo motor (380V/220V,50/60HZ)
	Servo pump	Japan Sumitomo
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	60Kg/cm²
	Cooling system	Separate water cooling cycle, oil cooler cooling system
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6 Mpa
	Air displacement	0.7M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	The separate cooling system of mold, barrel, and oil system
	Cooling medium	Water
	Water flow	65L/min
	Water pressure	0.3-0.6MPa

The main components of the machine

electronic parts
Name	Trader
Micro computer control system	TAIWAN WISETECH
Temperature Controller	TAIWAN HUIBANG
Auxiliary Relay	OMRON
contactor	SOLID
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	ABB from SWIZERLAND
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	YUKEN
Oil pump and connection	YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

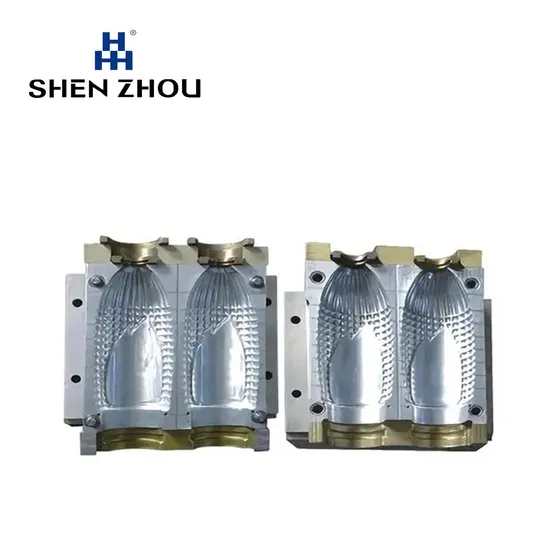

Product Description

Mould material	Mould hardness	Mould life
P20	HRC 29-33	300000 shot
H13	HRC>43	1000000 shot
718	HRC 30-36	500000 shot
S136	HRC 48-52	50000 shot
2344	HRC>48	800000 shot

3. PET Preform mold:

Name	Mult-cavity preform mould
Cavity	16 24 30 36 ....
Material	PET
Mould steel	S136
Runner system	hot runner
Gate type	valve gate
Eject way	stripper
Mould running	full automatically
Customized	Per customer request

Why Choose Us
Detailed Photos
Certifications
Company Profile
FAQ
1. Why choose us?
We not only supply the mold, but also the machine and related parts. Port city, convenient transportation.
2. How to ensure the quality of mould?
Debug on the machine before delivery to ensure no quality problems before delivery.
3. What about our after-sales service?
There is a perfect after-sales service system, super long warranty period, any product problems can contact us at any time.
4. About the price?
Higher discount for bulk purchase, price can be negotiated.
5. How long will delivery take after placing an order?
High production efficiency,short delivery time, specific circumstances can be negotiated.

---
