Product Details
Product Description
Product Description

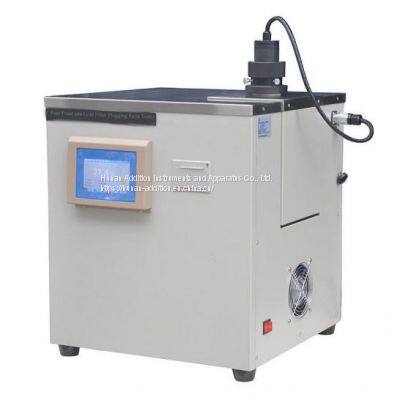

Multi-Function Automatic Pour Point and Cold Filter Point of Petroleum Products Tester
Model: JF510
Technical Parameter
Model
| JF510
|
Standard
| ASTM D97
|
Soldifying range
| 5℃~-70℃ range of light oil;
|
Hole
| 1 hole
|
Resolution
| 0.1℃
|
Temperature control precision
| ±0.1℃
|
Temperature control range
| 25℃~-70℃
|
Temperature control mode
| PID automatic control
|
Refrigeration system
| Two stage cascade refrigeration
|
Operating environment
| 5~40℃
|
Display mode
| 8 inch color LCD touch screen English display;
|
Printing mode
| Thermal printer
|
Relative humidity
| ≤80%
|
Size
| 420*300*450*mm
|
Weight
| 40kg
|
Power supply, frequency
| AC110,220,240 50,60Hz
|
Power
| ≤600W
|
Main Feature
◆The instrument is mainly composed of refrigeration system, control system and measurement system.
◆The refrigeration system is composed of two-stage refrigeration units. It adopts advanced compressor cascade refrigeration technology, which has the advantages of fast cooling speed and low refrigeration temperature.
◆The control system is mainly composed of heater, sensor, cold trap, and temperature control circuit, which has the advantages of fast response speed and high temperature control accuracy.
◆Determination system: It consists of test tube, test sleeve, photoelectric detection device, tilting frame, etc. The tilting frame can be tilted 45 degrees according to the requirements of the national standard, and has the function of displaying and prompting test results. This device can reduce the experimental error and improve the accuracy of the experiment.
>>
