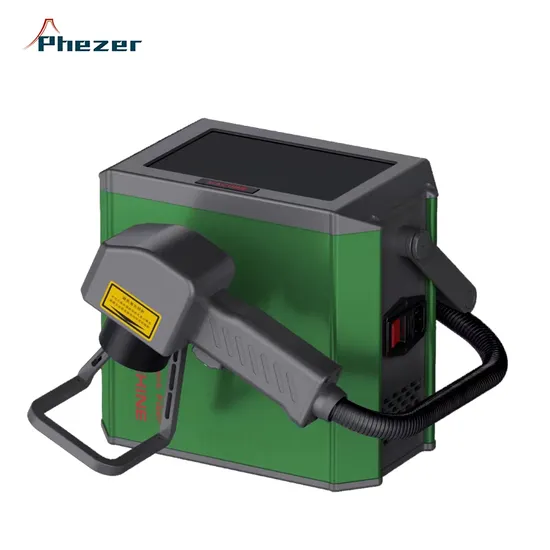

20W 30W 50W 100W Hand Held Fiber Laser Marking Machine / Mini Portable Fiber Laser Marking Machine Price Product Description
Laser printer is a perfect combination of high-speed laser marking equipment and full-automatic feeding system, with flexible matching, which can quickly connect and promote the benign interaction and improvement between production processes; optional CO2 laser, optional fiber laser, UV laser, etc., to meet the marking need of customers for different materials. Enterprises with conditions can establish " traceability system " of their own products, so as to strengthen the production management of enterprises to better meet the needs of the market.
| Machine material | Anodized aluminum structure |
| Laser type | Fiber laser generator |
| Output Power | ≥20W ≥30W |
| Laser wavelength | 1064nm |
| Marking method | High-precision 2D scanning method |
| Marking speed | ≤7000mm/s |
| Main control | | Highly integrated motherboard, embedded 7 inch screen.(Can connect to external 10 inch touch screen, dual system operation) |
|
| Operating system | WIN CE |
| Cooling System | Room temperature and air cooling |
| Marking & Lineation type | | Dot matrix and vector (both dot matrix and vector can be used) |
|
| Reflecting Mirror size | Standard configuration: 8.5mm |
| Marking range | Standard configuration: 55mm×55mm |
| Positioning | Red light positioning |
| Marking lines | Multi lines within the marking range |
| Print speed | 650 characters/second (related to product material and printing content) |
| Font | Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic number and other standard font libraries |
| File format | BMP/DXF/HPGL/JPEG/PLT |
| Bar code / QR code | CODE39,CODE128,CODE126,QR,Z-Code,DM Code,Visual Code, etc |
| Power supply | 220V |
| Power consumption | ≤300W |
| Pollution level | 2 |
| Working conditions | 0-40ºC |
