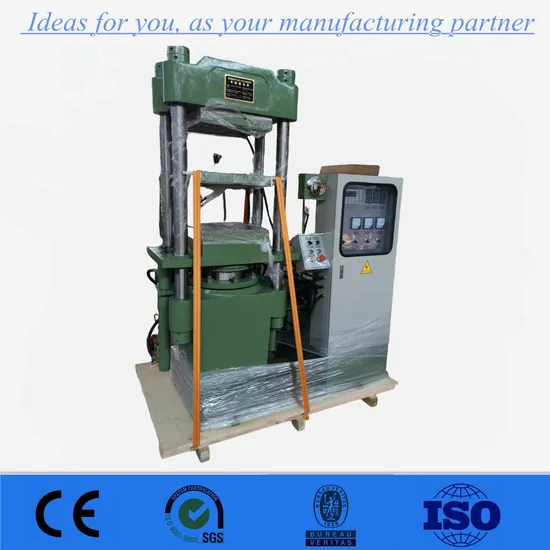

Rubber Vulcanizing Press Machine, Shoe Rubber Sole Making Machine

Product Description

Product Parameters roduct Description This machine is widely used for producing various kinds of rubber shoe soles in large quantity
Details Images
Product Paramenters

Model	100 Ton	200 ton	250 ton
mold closing/clamping force	100 ton	200 ton	250 ton
stroke	250mm	250mm	300mm
working plate	420*460mm	550*560mm	600*650mm
cylinder diameter	250mm	355mm	400mm
horse power	7.5 HP X2	10 HP*2	10 HP*2
heater power	16.5 KW	25 KW	31 KW
total power	30 KW	42 KW	49KW
type of mold opening	UP/DOWN/IN/OUT
gross weight	5500 kg	7000 kg	9000 kg
machine size	2600*1800*1800mm	2900*2200*2200mm	3200*2300*2100mm
Remark: We can also design the non standard machine according to your need

Model	300 Ton	350 Ton	400 Ton
mold clamping force	300 ton	350 ton	400 ton
stroke	300mm	300mm	300mm
working plate	650*650mm	700*750mm	800*800mm
cylinder	450mm	475mm	500mm
Horse Power	10 HP*2	15 HP *2	15 HP * 2
Heater Power	34 KW	44 KW	57 KW
Total power	52 kw	64 kw	79 kw
Type of mold opening	UP/DOWN/IN/OUT
gross weight	11000 kg	14000 kg	15000 kg
machine size	3500*2500*2100mm	3900*2800*2500mm	4000*3000*2600mm
Remark: we can also customize the non standard machine according to your need

Company Profile
Packaging & Shipping
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production . OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process? Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.

---
