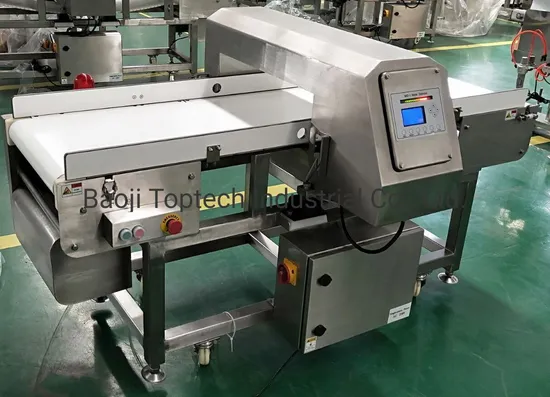

Factory Supply High Precision Metal Detector Foods Inspection (Europe quality)

Product Description

Metal detector, metal detectors machine, industrial metal detector, metal detection machine,foods metal detector, meat metal detector, chicken metal detector, fish metal detector, toy metal detector, rice metal detector, wheat flour metal detector, bread metal detector, cookie metal detector, tunnel metal detector, digital metal detectors machine, belt metal detector, conveyor metal detectors machine, metal detection machine, detect metal, check metal, find metal, free fall metal detector, pipe metal detector, gravity metal detector,pharmaceutical metal detectors,
Characteristics:
1. Big size structure design for big size and heavy product inspection.
2.Phase discriminating technology that can efectively refrain product effect;
3.Advanced DSP technology and leading intelligent algorithm improve the detection sensitivity.
4.Auto balance technology improve the working stability of machine.
5. Be able to detect out metals like iron, stainless steel, copper, gold, silver and aluminum, etc.
6.LCD display, Chinese&English operation menu;
7.Auto-setting function, automatically setting suitable working parameters according to different products;
8. Memory function support for 52 kinds of different products registering.
9, 4 level Password setting.
10 Simple conveyor structure, disassemble and assemble more convenient;
11 Special design of conveyor belt to avoid deviation;
12. Made of stainless steel, fairly good dustproof, waterproof ability. Easy to be clearned.
Usage:
Suitable for metal contaminants detection in various industries like: Aquatic Products, Meat & Poultry, Salted Products, Pastry, Nuts, Vegetables, Chemical Raw Materials, Pharmacy, Cosmetics, Toys. Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferrous metals (Copper, Aluminum etc.) and Stainless Steel.
Specifications:
Technical Parameter :

Model:	JL-IMD-5015
Detection tunnel width:	500mm
Detection tunnel height:	150mm
Conveyor belt width :	460mm
Max capacity:	30kgs
Motor output :	200W-300W
Speed(m/min):	25m/m
Display/Operation Panel	LCD display with button design
Display/Operation Language	English/Chinese/Spanish (Spanish Language by customer choose)
Alarm method:	Alarm and lamp flash to stop transfer
Auto reject:	auto pusher/ /plate turn-over (by customer's optional)
Conveyor belt:	Food Grade PU belt (Modular Conveyor by customer's optional)
Power:	AC110V/220V 50-60hz
Net Weight:200-250kgs	300kgs

Series:

Model	Tunnel width	Tunnel height	Detection sensitivity
3010,4010	300MM,400MM	100MM	Fe>=0.8mm;Non-fe>=1.0mm;Sus>=1.2mm
3012,4012	300MM.400MM	120MM	Fe>=0.8mm; Non-fe>=1.2mm;Sus>=1.5mm
3015,4015	300MM.400MM	150MM	Fe>=1.0mm;Non-fe>=1.5mm;Sus>=2.0mm
3020,4020	300MM.400MM	200MM	Fe>=1.2mm;Non-fe>=2.0mm;Sus>=2.5mm

Model	Tunnel width	Tunnel height	Detection sensitivity
5010,6010	500MM,600MM	100MM	Fe>=0.8mm;Non-fe>=1.0mm;Sus>=1.2mm
5012,6012	500MM,600MM	120MM	Fe>=0.8mm; Non-fe>=1.2mm;Sus>=1.5mm
5015,6015	500MM,600MM	150MM	Fe>=1.0mm;Non-fe>=1.5mm;Sus>=2.0mm
6020,6020	500MM,600MM	200MM	Fe>=1.2mm;Non-fe>=2.0mm;Sus>=2.5mm
6025,6025	500MM,600MM	250MM	Fe>=1.2mm;Non-fe>=2.0mm;Sus>=2.5mm
6030,6030	500MM,600MM	300MM	Fe>=1.5mm;Non-fe>=2.5mm;Sus>=3.0mm

Free fall tube metal detector,gravity pipe metal detector for powder product inspection
High accuracy Pharmaceutical Metal Detector for tablet,capsule inspection
Pipeline metal detector for jam,paste,milk,sauce liquid product inspection

---
